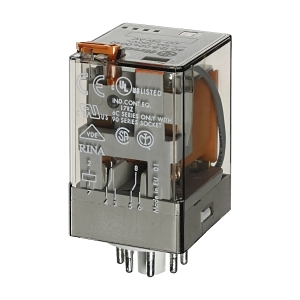

Product Name/Title: Finder 60 Series General Purpose Relay 10A 2CO 60V DC Coil with PB plus Mechanical Indicator
Brand: NHP
SKU: 601260VDCRLY
Alternatively Known As: General Purpose Relay, Switching Relay, Finder Relay
Technical Specifications
- Nominal Current: 10 A
- Nominal Voltage AC: 250 V
- Max Rated Operation Voltage (AC): 400 V
- Rated Switching Power at AC-1: 2500 VA
- Rated Switching Power at AC-15 (230 V): 500 VA
- Breaking Capacity at DC-1 (30 V): 10 A
- Breaking Capacity at DC-1 (110 V): 0.4 A
- Control Supply Voltage (DC): 60 V
- Electrical Life: 200,000 cycles
- Mechanical Life: 50,000,000 cycles
- Operating Temperature: -40 to 70 °C
- Dimensions (H x L x W): 36.4mm x 54.2mm x 32.5mm
- Weight: 0.2 kg
Key Features
- 10A nominal current with 2 changeover contacts.
- DC coil voltage of 60V with mechanical indicator.
- High electrical life rated for 200,000 cycles.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal performance.
Applications
- Industrial: Automation systems, control panels
- Commercial: HVAC systems, lighting control
- General: Any application requiring reliable switching
Standards & Compliance
- Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
- Durable design reduces the need for frequent replacements, minimizing waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Finder 60 Series General Purpose Relay is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable switching.
Non-Returnable & Non-Cancellable
