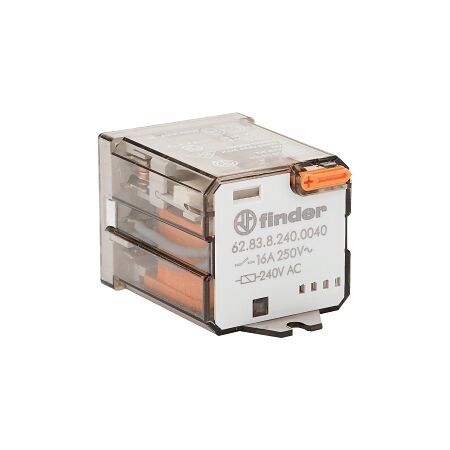

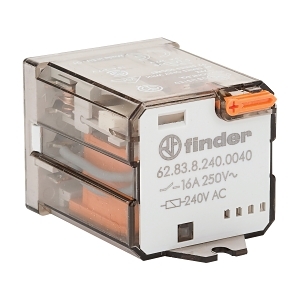

Product Name/Title: Finder 62 Series Power Relay Flange Mount 16A 2CO 240V AC Coil with Mounting Bracket
Brand: NHP
SKU: 62820008240VAC
Alternatively Known As: Power Relay, Flange Mount Relay, 16A Relay
Technical Specifications
- Nominal Current: 16 A
- Nominal Voltage AC: 250 V
- Max Rated Operation Voltage: 400 V
- Rated Switching Power at AC-1: 4000 VA
- Rated Switching Power at AC-15 (230 V): 750 VA
- Breaking Capacity at DC-1 (30 V): 16 A
- Breaking Capacity at DC-1 (110 V): 0.6 A
- Control Supply Voltage (50/60 Hz): 240 V
- Electrical Life: 100,000 cycles
- Mechanical Life: 10,000,000 cycles
- Operating Temperature: -40 to 70 °C
- Material Contact: Silver cadmium-oxide
- Dimensions (H x L x W): 35.8mm x 68mm x 38.2mm
- Weight: 0.5 kg
Key Features
- Flange mount design for easy installation.
- 16A nominal current rating for robust performance.
- 2 changeover contacts for versatile switching options.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Automation systems, control panels
- Commercial: HVAC systems, lighting control
- General: Any application requiring reliable switching of electrical loads
Standards & Compliance
- Complies with relevant Australian standards for electrical safety.
Environmental Benefits
- Designed for long electrical and mechanical life, reducing waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Finder 62 Series Power Relay Flange Mount 16A 2CO 240V AC Coil is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable switching.
