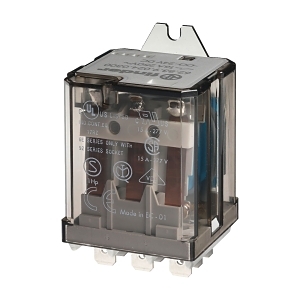

Product Name/Title: Finder 62 Series Power Relay Flange Mount 16A 2CO 24V AC Coil with Pushbutton and Mechanical Ind
Brand: NHP
SKU: 6282004024VAC
Alternatively Known As: Power Relay, Flange Mount Relay, 16A Relay
Technical Specifications
- Nominal Current: 16 A
- Nominal Voltage AC: 250 V
- Max Rated Operation Voltage: 400 V
- Rated Switching Power at AC 1: 4000 VA
- Rated Switching Power at AC 15 230 V: 750 VA
- Electrical Life: 100,000 cycles
- Mechanical Life: 30,000,000 cycles
- Operating Temperature: -40 to 70 °C
- Material of Contact: Silver cadmium-oxide
- Dimensions (H x L x W): 35.8mm x 68mm x 38.2mm
- Weight: 0.5 kg
Key Features
- 16A nominal current with 2 changeover contacts.
- Flange mounting suitable for easy installation.
- Mechanical indicator and latching test button included.
Professional Installation Requirements
- Professional installation by a qualified technician is recommended for optimal performance.
Applications
- Industrial: Automation systems, control panels
- Commercial: HVAC systems, machinery control
Standards & Compliance
- Complies with relevant Australian standards for electrical safety.
Environmental Benefits
- Energy-efficient design contributes to reduced power consumption.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Finder 62 Series Power Relay Flange Mount 16A 2CO 24V AC Coil is available now for immediate purchase. Ideal for industrial and commercial applications.
Non-Returnable & Non-Cancellable
