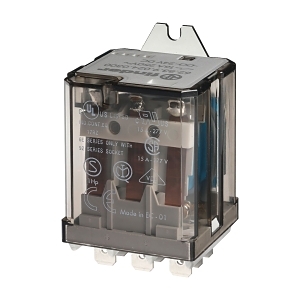

Product Name/Title: Finder 62 Series Power Relay Flange Mount 16A 3CO 12V DC Coil with Mounting Bracket
Brand: NHP
SKU: 6283000812VDC
Alternatively Known As: Power Relay, Flange Mount Relay, 16A Relay
Technical Specifications
- Nominal Current: 16 A
- Nominal Voltage AC: 250 V
- Max Rated Operation Voltage (UE AC): 400 V
- Number of Contacts: 3 (Change Over Contact)
- Rated Switching Power at AC-1: 4000 VA
- Rated Switching Power at AC-15 (230 V): 750 VA
- Breaking Capacity at DC-1 (30 V): 16 A
- Breaking Capacity at DC-1 (110 V): 0.6 A
- Control Supply Voltage (US) at DC: 12 V
- Electrical Life: 100,000 cycles
- Mechanical Life: 30,000,000 cycles
- Operating Temperature: -40 to 70 °C
- Dimensions (H x L x W): 36mm x 68mm x 38mm
- Weight: 0.5 kg
Key Features
- Flange mounting design for easy installation.
- Rated for 16A with a 12V DC coil.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Automation systems, control panels
- Commercial: HVAC systems, lighting control
- General: Any application requiring reliable switching of electrical loads
Standards & Compliance
- Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
- Durable design reduces the need for frequent replacements, minimizing waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Finder 62 Series Power Relay Flange Mount 16A 3CO 12V DC Coil is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable switching solutions.
Non-Returnable & Non-Cancellable
