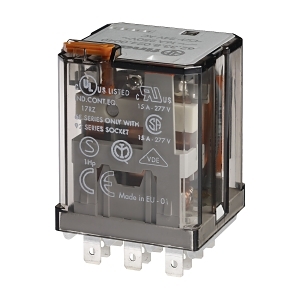

Product Name/Title: Finder 62 Series Power Relay Plug in 16A 3CO 48V DC Coil with Pushbutton plus Mechanical Indicator
Brand: NHP
SKU: 623348VDC
Alternatively Known As: Power Relay, PCB Relay, Switching Relay
Technical Specifications
- Nominal Current: 16 A
- Nominal Voltage AC: 250 V
- Max Rated Operation Voltage (AC): 400 V
- Rated Switching Power at AC-1: 4000 VA
- Rated Switching Power at AC-15 (230 V): 750 VA
- Breaking Capacity at DC-1 (30 V): 16 A
- Breaking Capacity at DC-1 (110 V): 0.6 A
- Control Supply Voltage (DC): 48 V
- Electrical Life: 100,000 cycles
- Mechanical Life: 30,000,000 cycles
- Operating Temperature: -40 to 70 °C
- Dimensions (H x L x W): 35.8mm x 47.6mm x 38.2mm
- Weight: 0.2 kg
Key Features
- 16A nominal current with 3 changeover contacts.
- Plug-in connection for easy installation.
- Mechanical indicator and latching test button included.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal performance.
Applications
- Industrial: Automation systems, control panels
- Commercial: HVAC systems, lighting control
- General: Any application requiring reliable switching of electrical loads
Standards & Compliance
- Complies with relevant Australian standards for electrical safety.
Environmental Benefits
- Energy-efficient design contributes to reduced power consumption.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Finder 62 Series Power Relay Plug in 16A 3CO 48V DC Coil is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable switching.
Non-Returnable & Non-Cancellable
