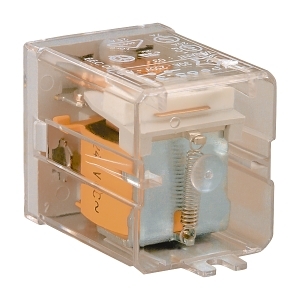

Product Name/Title: Finder 65 Series Power Relay Flange Mount 20A 12V AC Coil 1NO 1NC Contacts
Brand: NHP
SKU: 653112VAC
Alternatively Known As: Power Relay, Flange Mount Relay, 20A Relay
Technical Specifications
- Nominal Current: 20 A
- Nominal Voltage AC: 250 V
- Max Rated Operation Voltage: 400 V
- Number of Contacts: 1NO, 1NC
- Rated Switching Power at AC 1: 5000 VA
- Rated Switching Power at AC 15 230 V: 1000 VA
- Electrical Life: 80000 cycles
- Mechanical Life: 10000000 cycles
- Operating Temperature: -40 to 75 °C
- Material of Contact: Silver cadmium-oxide
- Drive Switching Attitude: Mono stable
- Dimensions (H x L x W): 36.5mm x 57.2mm x 32.2mm
- Weight: 0.2 kg
Key Features
- 20A nominal current with 12V AC coil.
- 1NO and 1NC contacts for versatile applications.
- Suitable for flange mounting.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Automation systems, control panels
- Commercial: HVAC systems, lighting control
- General: Any application requiring reliable switching of electrical loads
Standards & Compliance
- Complies with relevant Australian standards for electrical safety.
Environmental Benefits
- Energy-efficient operation reduces overall power consumption.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Finder 65 Series Power Relay Flange Mount 20A 12V AC Coil is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable switching.
Non-Returnable & Non-Cancellable
