6531M240VAC

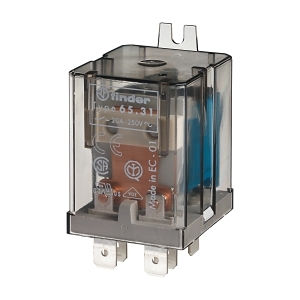

Finder 65 Series Power Relay Flange Mount 30A 240V AC Coil 1NO Contacts

$67.60 List price: $89.80
+ −
30 Days Return Delivery Options
Weight: 0.500 kg

Product Name/Title: Finder 65 Series Power Relay Flange Mount 30A 240V AC Coil 1NO Contacts

Brand: NHP

SKU: 6531M240VAC

Alternatively Known As: Power Relay, Flange Mount Relay, 30A Relay

Technical Specifications
  • Nominal Current: 30 A
  • Nominal Voltage AC: 250 V
  • Max Rated Operation Voltage: 400 V
  • Rated Switching Power at AC 1: 7500 VA
  • Rated Switching Power at AC 15 230 V: 1250 VA
  • Electrical Life: 80000 cycles
  • Mechanical Life: 10000000 cycles
  • Operating Temperature: -40 to 75 °C
  • Material of Contact: Silver cadmium-oxide
  • Dimensions (H x L x W): 36.5mm x 57.2mm x 32.2mm
  • Weight: 0.5 kg
Key Features
  • 30A nominal current with 1 normally open contact.
  • Rated for 240V AC coil operation.
  • Suitable for flange mounting.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Automation systems, control panels
  • Commercial: HVAC systems, lighting control
  • General: Any application requiring reliable switching of electrical loads
Standards & Compliance
  • Complies with relevant Australian standards for electrical safety.
Environmental Benefits
  • Energy-efficient operation reduces overall power consumption.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Finder 65 Series Power Relay Flange Mount 30A 240V AC Coil 1NO Contacts is available now for immediate purchase. Ideal for industrial and commercial applications.
