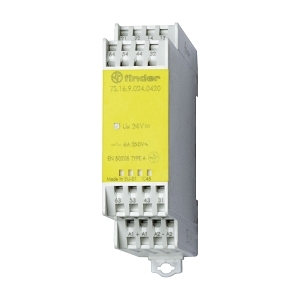

Product Name/Title: Finder 7S Series Safety Relay Forcibly Guided 6A 110V DC Coil 4 N.O. 2 N.C. Contacts
Brand: NHP
SKU: 7S1691100420
Alternatively Known As: Safety Relay, Modular Relay, Switching Relay
Technical Specifications
- Nominal Current: 6 A
- Nominal Voltage AC: 250 V
- Number of Normally Closed Contacts: 4
- Number of Normally Open Contacts: 2
- Rated Switching Power at AC-1: 1500 VA
- Rated Switching Power at AC-15 (230 V): 700 VA
- Breaking Capacity at DC-1 (30 V): 6 A
- Breaking Capacity at DC-1 (110 V): 0.6 A
- Voltage Type for Actuating: DC
- Control Supply Voltage (DC): 110 V
- Rated Control Supply Voltage (DC): 77-138 V
- Type of Electric Connection: Spring clamp connection
- Electrical Life at Un in Service Cycles: 100000 cycles
- Degree of Protection: IP20
- Mechanical Life Service Cycles: 10000000 cycles
- Max Shock Acceleration: 20 g
- Max Shock Duration: 8 ms
- Max Vibration Acceleration: 10 m/s²
- Max Vibration Frequency Operational: 200 Hz
- With Detachable Clamps: No
- Operating Temperature: -40-70 °C
- Dimensions (H x L x W): 78.8mm x 96mm x 22.5mm
- Weight: 0.5 kg
Key Features
- Forcibly guided contacts for enhanced safety.
- High electrical and mechanical life.
- Spring clamp connection for easy installation.
Professional Installation Requirements
- Professional installation by a qualified technician is recommended for optimal safety.
Applications
- Industrial: Safety systems in machinery and equipment
- Commercial: Automation and control systems
Standards & Compliance
- Complies with relevant safety standards for electrical devices.
Environmental Benefits
- Designed for energy efficiency and long service life.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Finder 7S Series Safety Relay is available now for immediate purchase. Ideal for industrial and commercial safety applications.
