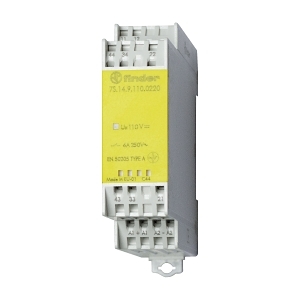

Product Name/Title: Finder 7S Series Safety Relay Forcibly Guided 6A 120V AC Coil 3 N.O. 1 N.C. Contacts
Brand: NHP
SKU: 7S1481200310
Alternatively Known As: Safety Modular Relay, Switching Relay
Technical Specifications
- Nominal Current: 6 A
- Nominal Voltage AC: 250 V
- Number of Normally Closed Contacts: 3
- Number of Normally Open Contacts: 1
- Rated Switching Power at AC-1: 1500 VA
- Rated Switching Power at AC-15 (230 V): 700 VA
- Breaking Capacity at DC-1 (30 V): 6 A
- Breaking Capacity at DC-1 (110 V): 0.6 A
- Control Supply Voltage (AC 50 Hz): 120 V
- Control Supply Voltage (AC 60 Hz): 120 V
- Electrical Life at Un in Service: 100000 cycles
- Operating Voltage: 93-138 V
- Degree of Protection: IP20
- Mechanical Life: 10000000 cycles
- Max Shock Acceleration: 20 g
- Max Shock Duration: 8 ms
- Max Vibration Acceleration: 10 m/s²
- Max Vibration Frequency Operational: 200 Hz
- Operating Temperature: -40-70 °C
- Dimensions (H x L x W): 80mm x 60mm x 100mm
- Weight: 0.5 kg
Key Features
- Forcibly guided contacts for enhanced safety.
- High electrical and mechanical life.
- IP20 protection degree.
Professional Installation Requirements
- Professional installation by a qualified technician is recommended for optimal safety.
Applications
- Industrial: Safety systems in machinery and equipment
- Commercial: Automation and control systems
Standards & Compliance
- Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
- Durable design reduces waste and promotes longevity.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Finder 7S Series Safety Relay is available now for immediate purchase. Ideal for safety applications in industrial and commercial environments.
