HAGER Changeover Switch 4 Pole 63 Amp 240v 50Hz Din Mounted

$282.10 List price: $423.20

+ −

30 Days Return Delivery Options

Weight: 0.300 kg

Description

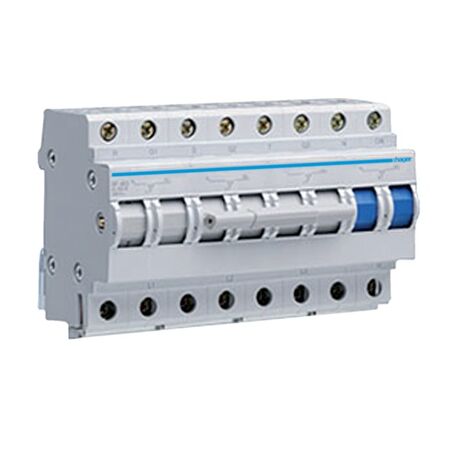

Changeover Switch HAGER SF463 | 4 Pole 63 Amp 240v 50Hz Din Mounted

What is a change over switch? A changeover switch switches a house's electricity supply from the general grid power supply to a "generator system" in case of power outage. The changeover switch connects to the main power grid, generator or alternate source and the house wiring. When you switch or "Change over" all the power on that circuit changes from either Grid or Generator. (not allowing it to flow back into each other (Grid and generator))

Technical Properties

Rated current 63 A
Rated operational AC voltage 400 V
Frequency 50/60 Hz
type of connection with screw
Connection cross-sect. rigid cable 25mm²
Connection cross-sect. flexible cable 16mm²
Number of mechanical operations 100000
Electrical durability at nominal load in AC21in
operating cycles 5000
Operating temperature -20 to 50 °C
Storage temperature -40 to 80 °C
Protection index IP 20
Number of modules 8
