Trade Discount 33%

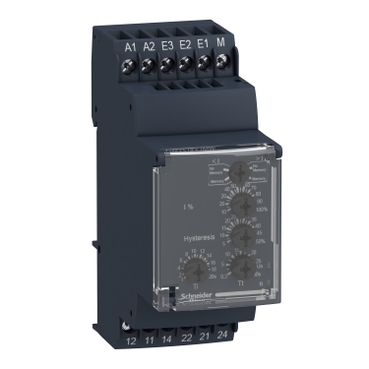

RM35JA32MW

Harmony Control Relays, Modular 1 phase current Control Relay, 5 A, 2 CO, 0.15…15 A , 24…240 V AC/DC


$412.20 List price: $618.30
+

Weight: 0.136 kg

Product Name/Title: Harmony Control Relays, Modular 1 phase current Control Relay, 5 A, 2 CO, 0.15…15 A , 24…240 V AC/DC

Brand: Clipsal

SKU: RM35JA32MW

Alternatively Known As: Current Control Relay, Modular Relay, Phase Control Relay

Technical Specifications
  • Rated current: 5 A
  • Measurement range: 0.15...15 A
  • Control circuit voltage: 24...240 V AC/DC
  • Electrical durability: 100,000 cycles
  • Mechanical durability: 30,000,000 cycles
  • IP rating: IP20 (terminals), IP30 (casing)
  • Operating temperature: -20...50 °C
  • Humidity: 95% at 55 °C
  • Material: Self-extinguishing plastic
  • Dimensions (H x L x W): 90mm x 70mm x 35mm
  • Weight: 0.136 kg
Key Features
  • Modular design for easy integration into existing systems.
  • Adjustable time delay settings for operational flexibility.
  • LED indicators for power and relay status.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Automation systems, machinery control
  • Commercial: Building management systems, energy monitoring
Standards & Compliance
  • Complies with IEC 60255 for safety and performance standards.
Environmental Benefits
  • Green Premium product status indicating reduced environmental impact.
Warranty Information

18 months warranty against manufacturing defects.

Available Now

The Clipsal Harmony Control Relay is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable current control.

RM35JA32MW (RM35JA32MW, 864 Kb) [Download]
