RXG22JD

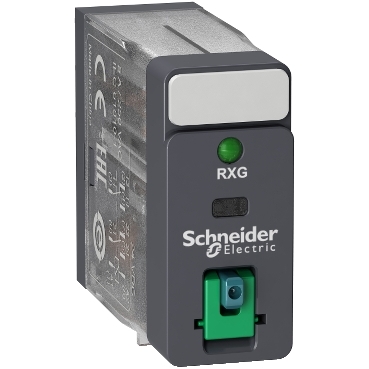

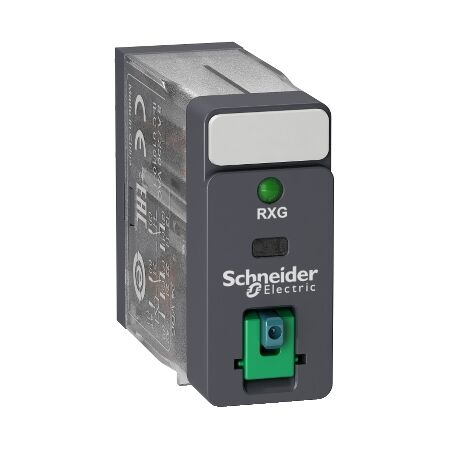

Harmony Electromechanical Relays, Interface plug in relay, 5A, 2CO, with LED, lockable test button, 12V DC


$24.30 List price: $36.40
+

Weight: 0.225 kg

Product Name/Title: Harmony Electromechanical Relays, Interface plug in relay, 5A, 2CO, with LED, lockable test button, 12V DC

Brand: Clipsal

SKU: RXG22JD

Alternatively Known As: Electromechanical Relay, Plug-in Relay, Interface Relay

Technical Specifications
  • Rated current: 5A
  • Control circuit voltage: 12V DC
  • Contact resistance: 100 mOhm
  • Insulation resistance: 1000 MOhm at 500V DC
  • Electrical insulation class: Class F
  • Maximum switching voltage: 250V AC, 30V DC
  • Dielectric strength: 1000V AC between contacts
  • Operating time: 20ms
  • Reset time: 20ms
  • Vibration resistance: 3gn in operation
  • Dimensions (H x L x W): 34.5mm x 86mm x 92.5mm
  • Weight: 0.225 kg
Key Features
  • 5A rated current with 2 changeover contacts (2CO).
  • LED indicator for operational status.
  • Lockable test button for safety and convenience.
  • High mechanical durability with 10 million cycles.
Professional Installation Requirements
  • Professional installation by a qualified technician is recommended for optimal performance.
Applications
  • Industrial: Automation systems, control panels, machinery
Standards & Compliance
  • Complies with UL 508, IEC 61810-1, CSA C22.2 No 14.
Environmental Benefits
  • Green Premium product with environmentally friendly packaging.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Clipsal Harmony Electromechanical Relay is available now for immediate purchase. Ideal for industrial automation and control applications.

RXG22JD (RXG22JD, 802 Kb) [Download]
