XARSK12D18W

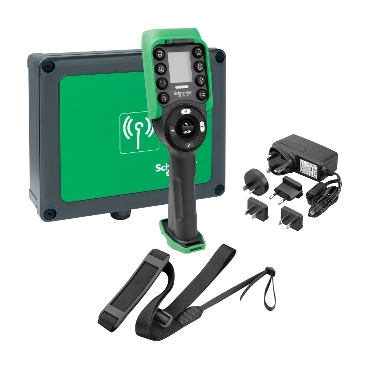

Harmony eXLhoist, Standard Xsystem with charger, shoulder belt, cable USB/RJ45 and config software


$4,062.50 List price: $6,093.70
+

Weight: 3.042 kg

Product Name/Title: Harmony eXLhoist, Standard Xsystem with charger, shoulder belt, cable USB/RJ45 and config software

Brand: Clipsal

SKU: XARSK12D18W

Alternatively Known As: Wireless Control Station, Bluetooth Control Station, Hoisting Control Station

Technical Specifications
  • Number of channels: 50
  • Transmission frequency: 2.4 GHz
  • Relative humidity: 0...95 % at -20...45 °C storage
  • Control station type: wireless
  • Emergency stop function: SIL 3 maximum
  • Motion function: SIL 1 maximum
  • Resistance to electrostatic discharge: 4 kV class B (on contact)
  • Dimensions (H x L x W): 200mm x 310mm x 290mm
  • Weight: 3.042 kg
Key Features
  • Wireless control station with Bluetooth Low Energy communication.
  • Operating distance of 100 m in free air.
  • Supports multiple safety functions including emergency stop and motion control.
Professional Installation Requirements
  • Professional installation is recommended for optimal safety and performance.
Applications
  • Industrial: Hoisting applications, material handling
Standards & Compliance
  • Complies with IEC 60204-1, ISO 13849-1, IEC 62061, and other relevant safety standards.
Environmental Benefits
  • Complies with various safety and environmental standards.
Warranty Information

Standard warranty applies.

Available Now

The Clipsal Harmony eXLhoist Control Station is available now for immediate purchase. Ideal for industrial applications requiring reliable hoisting control.

XARSK12D18W (XARSK12D18W, 449 Kb) [Download]
