SSM1A112BDR

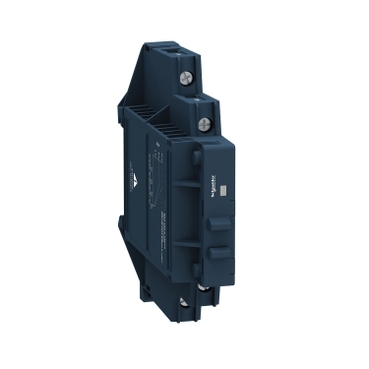

Harmony Solid State Relays, Solid state modular relay, 12A, DIN rail mount, random switching, input 4...32V DC, output 24...280V AC


$120.50 List price: $180.70
+

Weight: 0.090 kg

Product Name/Title: Harmony Solid State Relays, Solid state modular relay, 12A, DIN rail mount, random switching, input 4...32V DC, output 24...280V AC

Brand: Clipsal

SKU: SSM1A112BDR

Alternatively Known As: Solid State Relay, Modular Relay, DIN Rail Relay

Technical Specifications
  • Rated current: 12A
  • Insulation resistance: 1000 MOhm at 500 V DC
  • Control circuit voltage: 4...32 V DC
  • Surge current: 715 A for 16.6 ms
  • Maximum voltage drop: <1.3 V on-state
  • Dielectric strength: 4 kV AC for input/output
  • Pollution degree: 2
  • Flame retardance: V0 conforming to UL 94
  • Dimensions (H x L x W): 90.3mm x 83.7mm x 18mm
  • Weight: 0.09 kg
Key Features
  • Modular DIN rail relay with random voltage switching.
  • Input voltage range of 4...32V DC and output voltage range of 24...280V AC.
  • LED indicator for input status.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Automation systems, machinery control
  • Commercial: HVAC systems, lighting control
Standards & Compliance
  • Complies with IEC 60950-1, IEC 61000, IEC 62314
Environmental Benefits
  • Green Premium product with sustainable packaging.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Clipsal Harmony Solid State Relay is available now for immediate purchase. Ideal for industrial automation and control applications.

SSM1A112BDR (SSM1A112BDR, 405 Kb) [Download]
