Trade Discount 33%
RE17RLMU

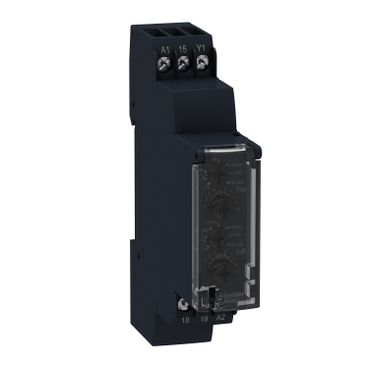

Harmony Timer Relays, Modular timing relay, 8A, 1CO, 1s..100h, asymmetrical flashing, 24V DC 24...240V AC DC


$167.30 List price: $251.00
+

Weight: 0.100 kg

Product Name/Title: Harmony Timer Relays, Modular timing relay, 8A, 1CO, 1s..100h, asymmetrical flashing, 24V DC 24...240V AC DC

Brand: Clipsal

SKU: RE17RLMU

Alternatively Known As: Modular Timer Relay, Asymmetrical Flashing Relay, Timing Relay 8A

Technical Specifications
  • Rated current: 8A
  • Control type: Selector switch
  • Electrical durability: 100,000 cycles at 8A
  • Mechanical durability: 10,000,000 cycles
  • IP Rating: IP20 (terminal block), IP40 (housing), IP50 (front panel)
  • Operating temperature: -20 to 60 °C
  • Relative humidity: 93% without condensation
  • Dimensions (H x L x W): 90mm x 72mm x 17.5mm
  • Weight: 0.1 kg
Key Features
  • Modular design for easy integration.
  • Asymmetrical flashing functionality.
  • Wide voltage range: 24V DC to 240V AC/DC.
  • High electrical durability with 100,000 cycles.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal performance.
Applications
  • Industrial: Automation systems, machinery control
  • Commercial: Lighting control, HVAC systems
Standards & Compliance
  • Complies with IEC 61000-6-2 and IEC 61000-6-3 for EMC.
Environmental Benefits
  • Complies with environmental standards and regulations.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Clipsal Harmony Timer Relay is available now for immediate purchase. Ideal for industrial and commercial applications.

RE17RLMU (RE17RLMU, 709 Kb) [Download]
