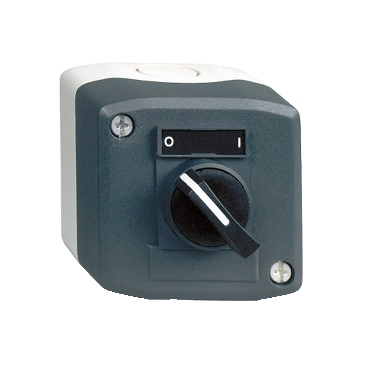

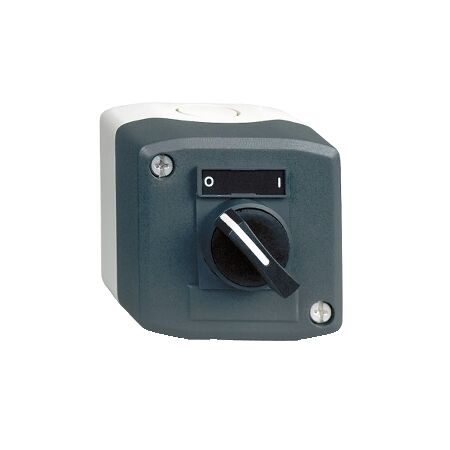

Product Name/Title: Harmony XALD XALK, Control station, plastic, dark grey lid, 1 selector switch, standard handle 22mm, 1NO
Brand: Clipsal
SKU: XALD134
Alternatively Known As: Control Station, Selector Switch Station, Harmony Control Unit
Technical Specifications
- Rated operational current: 6 A at 120 V, 2 A at 600 V, 1 A at 600 V DC.
- Cable entry: 2 knock-outs for cable entry.
- Material: Polycarbonate housing.
- Electrical durability: 1,000,000 cycles.
- Operating temperature: -40 to 70 °C.
- IP Rating: IP66, IP67, IP69K.
- IK Rating: IK05.
- Dimensions (H x L x W): 70mm x 100mm x 100mm
- Weight: 0.163 kg
Key Features
- Complete control station with 1 selector switch and standard handle.
- IP66, IP67, IP69K rated for high protection against dust and water.
- Mechanical durability of 1,000,000 cycles.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Control and signaling units for machinery and equipment.
Standards & Compliance
- Complies with IEC 60947-5-1 for safety and performance standards.
Environmental Benefits
- Packaging made with recycled cardboard.
- Green Premium product status.
Warranty Information
18 months warranty against manufacturing defects.
Available Now
The Clipsal Harmony XALD Control Station is available now for immediate purchase. Ideal for industrial applications requiring reliable control solutions.
