XALD03

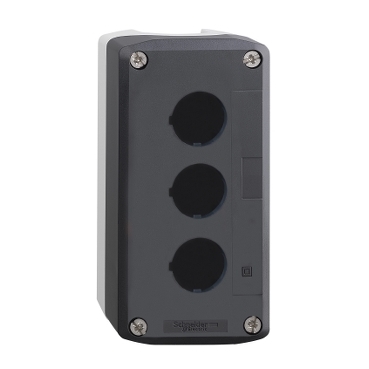

Harmony XALD XALK, Empty control station, plastic, dark grey lid, light grey base, 3 cut out


$75.70 List price: $113.60
+

Weight: 0.238 kg

Product Name/Title: Harmony XALD XALK, Empty control station, plastic, dark grey lid, light grey base, 3 cut out

Brand: Clipsal

SKU: XALD03

Alternatively Known As: Empty Control Station, Harmony Control Station, Clipsal Control Box

Technical Specifications
  • Material: Polycarbonate
  • Cable entry: 2 knock-outs for cable entry, clamping capacity: 14-14 mm²
  • IP Rating: IP66, IP67, IP69, IP69K
  • IK Rating: IK03
  • Operating temperature: -40...70 °C
  • Overvoltage category: Class II conforming to IEC 60536
  • NEMA degree of protection: NEMA 13, NEMA 4X
  • Dimensions (H x L x W): 75mm x 70mm x 137mm
  • Weight: 0.238 kg
Key Features
  • IP66 rated for protection against dust and water.
  • Compatible with XB5 Ø 22 mm control and signaling units.
  • Designed for customer assembly with 3 cut-outs.
Professional Installation Requirements
  • Professional installation is recommended for optimal safety and functionality.
Applications
  • Industrial: Control and signaling units for machinery and equipment.
Standards & Compliance
  • Complies with IEC 60947-1 and other relevant standards.
Environmental Benefits
  • Packaging made with recycled cardboard.
  • Green Premium product status.
Warranty Information

18 months warranty against manufacturing defects.

Available Now

The Clipsal Harmony XALD Empty Control Station is available now for immediate purchase. Ideal for industrial applications requiring robust control solutions.

XALD03 (XALD03, 686 Kb) [Download]
