XALK04

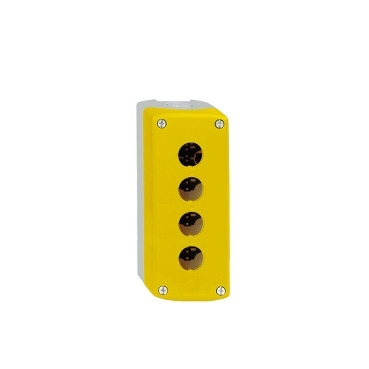

Harmony XALD XALK, Empty control station, plastic, yellow, 4 cut-outs, unmarked


$125.50 List price: $188.20
+

Weight: 0.278 kg

Product Name/Title: Harmony XALD XALK, Empty control station, plastic, yellow, 4 cut-outs, unmarked

Brand: Clipsal

SKU: XALK04

Alternatively Known As: Empty Control Station, Harmony Control Station, Clipsal Control Box

Technical Specifications
  • Material: Polycarbonate
  • Cable entry: 2 knock-outs for cable entry, clamping capacity: 14-14 mm²
  • IP Rating: IP66, IP67, IP69, IP69K
  • IK Rating: IK03
  • Overvoltage category: Class II
  • NEMA degree of protection: NEMA 13, NEMA 4X
  • Ambient temperature for operation: -40...70 °C
  • Dimensions (H x L x W): 74mm x 170mm x 83mm
  • Weight: 0.278 kg
Key Features
  • IP66 rated for protection against dust and water.
  • Compatible with XB5 Ø 22 mm control and signaling units.
  • Designed for emergency stop and switching off functions.
Professional Installation Requirements
  • Professional installation is recommended for optimal safety and functionality.
Applications
  • Industrial: Control and signaling applications
Standards & Compliance
  • Complies with IEC 60947-5-1 and other relevant standards.
Environmental Benefits
  • Green Premium product with packaging made from recycled cardboard.
Warranty Information

18 months warranty against manufacturing defects.

Available Now

The Clipsal Harmony XALD XALK Empty Control Station is available now for immediate purchase. Ideal for industrial control and signaling applications.

XALK04 (XALK04, 259 Kb) [Download]
