XALK05

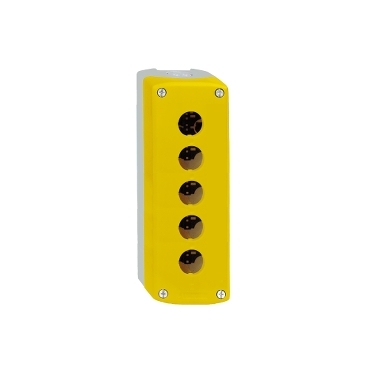

Harmony XALD XALK, Empty control station, plastic, yellow, 5 cut-outs, unmarked


$158.60 List price: $237.80
+

Weight: 0.322 kg

Product Name/Title: Harmony XALD XALK, Empty control station, plastic, yellow, 5 cut-outs, unmarked

Brand: Clipsal

SKU: XALK05

Alternatively Known As: Empty Control Station, Harmony Control Station, Clipsal Control Box

Technical Specifications
  • Material: Polycarbonate
  • Cable entry: 2 knock-outs for cable entry, clamping capacity: 14-14 mm²
  • IP Rating: IP66, IP67, IP69, IP69K
  • IK Rating: IK03
  • Overvoltage category: Class II
  • NEMA degree of protection: NEMA 13, NEMA 4X
  • Ambient temperature for operation: -40 to 70 °C
  • Dimensions (H x L x W): 73mm x 199mm x 81mm
  • Weight: 0.322 kg
Key Features
  • IP66 rated for protection against dust and water.
  • Compatible with XB5 Ø 22 mm control and signaling units.
  • Designed for customer assembly with 5 cut-outs.
Professional Installation Requirements
  • Professional installation is recommended for optimal functionality and safety.
Applications
  • Industrial: Control and signaling applications
  • Emergency: Emergency stop and switching off functions
Standards & Compliance
  • Complies with UL 508, IEC 60947-5-1, IEC 60947-1 standards.
Environmental Benefits
  • Green Premium product with packaging made from recycled cardboard.
Warranty Information

18 months warranty against manufacturing defects.

Available Now

The Clipsal Harmony XALD XALK Empty Control Station is available now for immediate purchase. Ideal for industrial control and signaling applications.

XALK05 (XALK05, 262 Kb) [Download]
