XALD01

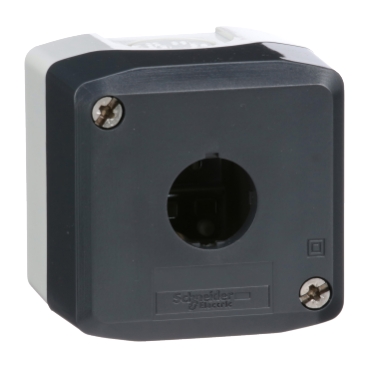

Harmony XALD XALK, Empty enclosure, plastic, dark grey lid, for push-button 22mm, 1 cut out


$44.00 List price: $66.00
+

Weight: 0.136 kg

Product Name/Title: Harmony XALD XALK, Empty enclosure, plastic, dark grey lid, for push-button 22mm, 1 cut out

Brand: Clipsal

SKU: XALD01

Alternatively Known As: Harmony XALD Enclosure, Empty Control Station, Push-Button Enclosure

Technical Specifications
  • Material: Polycarbonate
  • Cable entry: 1 knock-out for cable entry, clamping capacity: 14-14 mm²
  • IP Rating: IP66, IP67, IP69, IP69K
  • IK Rating: IK03
  • Operating temperature: -40 to 70 °C
  • Resistance to high pressure washer: 7000000 Pa at 55 °C
  • Dimensions (H x L x W): 75mm x 70mm x 70mm
  • Weight: 0.136 kg
Key Features
  • IP66 rated for protection against dust and water ingress.
  • Compatible with XB5 Ø 22 mm control and signaling units.
  • Robust polycarbonate construction for durability.
Professional Installation Requirements
  • Professional installation is recommended for optimal performance and safety.
Applications
  • Industrial: Control stations for machinery and equipment
  • Commercial: Signaling and control in various environments
Standards & Compliance
  • Complies with IEC 60947-5-5, IEC 60947-5-4, CSA C22.2 No 14
Environmental Benefits
  • Packaging made with recycled cardboard.
  • Green Premium product status.
Warranty Information

18 months warranty against manufacturing defects.

Available Now

The Clipsal Harmony XALD Empty Enclosure is available now for immediate purchase. Ideal for industrial control applications.

XALD01 (XALD01, 599 Kb) [Download]
