XALD02

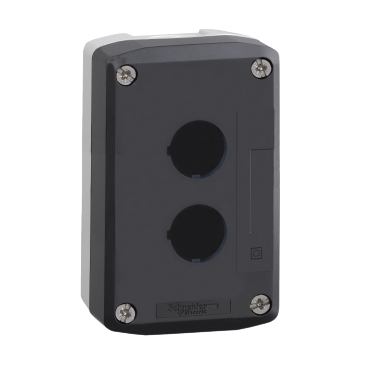

Harmony XALD XALK, Empty enclosure, plastic, dark grey lid, for push-button 22mm, 2 cut outs


$49.70 List price: $74.50
+

Weight: 0.193 kg

Product Name/Title: Harmony XALD XALK, Empty enclosure, plastic, dark grey lid, for push-button 22mm, 2 cut outs

Brand: Clipsal

SKU: XALD02

Alternatively Known As: Harmony XALD Enclosure, Empty Control Station, Push-Button Enclosure

Technical Specifications
  • Material: Polycarbonate
  • IP Rating: IP66, IP67, IP69, IP69K
  • IK Rating: IK03
  • Ambient temperature for operation: -40 to 70 °C
  • Cable entry: 2 knock-outs for Pg 13 cable gland and ISO M20
  • Dimensions (H x L x W): 80mm x 70mm x 107mm
  • Weight: 0.193 kg
Key Features
  • IP66 rated for protection against dust and water ingress.
  • Compatible with XB5 Ø 22 mm control and signalling units.
  • Two knock-outs for cable entry.
Professional Installation Requirements
  • Professional installation is recommended for optimal safety and functionality.
Applications
  • Industrial: Control stations for machinery and equipment
  • Commercial: Signalling and control in various applications
Standards & Compliance
  • Complies with IEC 60947-5-4, UL 508, IEC 60947-5-5, IEC 60947-5-1
Environmental Benefits
  • Packaging made with recycled cardboard.
  • Green Premium product status.
Warranty Information

18 months warranty against manufacturing defects.

Available Now

The Clipsal Harmony XALD Empty Enclosure is available now for immediate purchase. Ideal for industrial control applications.

XALD02 (XALD02, 570 Kb) [Download]
