XALD05

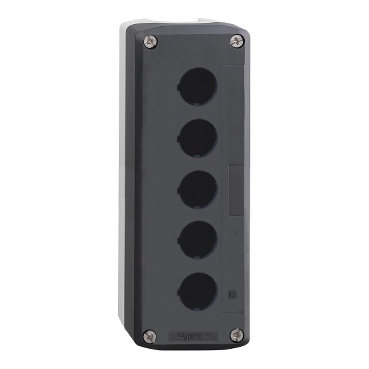

Harmony XALD XALK, Empty enclosure, plastic, dark grey lid, for push-button 22mm, 5 cut outs


$124.00 List price: $186.00
+

Weight: 0.322 kg

Product Name/Title: Harmony XALD XALK, Empty enclosure, plastic, dark grey lid, for push-button 22mm, 5 cut outs

Brand: Clipsal

SKU: XALD05

Alternatively Known As: Harmony XALD Enclosure, Clipsal Control Station, Empty Control Box

Technical Specifications
  • Material: Polycarbonate
  • Cable entry: 2 knock-outs for cable entry, clamping capacity: 14-14 mm²
  • IP Rating: IP66, IP67, IP69, IP69K
  • IK Rating: IK03
  • Operating temperature: -40 to 70 °C
  • Overvoltage category: Class II
  • NEMA rating: NEMA 13, NEMA 4X
  • Dimensions (H x L x W): 197mm x 76mm x 70mm
  • Weight: 0.322 kg
Key Features
  • IP66 rated for protection against dust and water.
  • Compatible with XB5 Ø 22 mm control and signaling units.
  • 5 cut-outs for flexible configuration.
Professional Installation Requirements
  • Professional installation is recommended for optimal performance and safety.
Applications
  • Industrial: Control stations for machinery and equipment
  • Commercial: Signaling and control in various applications
Standards & Compliance
  • Complies with IEC 60947-5-1, IEC 60947-1, CSA C22.2 No 14
Environmental Benefits
  • Packaging made with recycled cardboard.
  • Green Premium product status.
Warranty Information

18 months warranty against manufacturing defects.

Available Now

The Clipsal Harmony XALD Empty Enclosure is available now for immediate purchase. Ideal for industrial control applications.

XALD05 (XALD05, 617 Kb) [Download]
