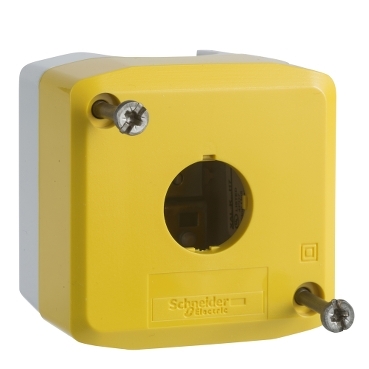

Product Name/Title: Harmony XALD XALK, Empty enclosure, plastic, yellow lid for push-button 22mm, 1 cut out
Brand: Clipsal
SKU: XALK01
Alternatively Known As: Harmony Control Station, Empty Control Enclosure, Push-button Enclosure
Technical Specifications
- Material: Polycarbonate
- Cable entry: 1 knock-out for cable entry, clamping capacity: 14-14 mm²
- IP Rating: IP66, IP67, IP69, IP69K
- IK Rating: IK03
- Overvoltage category: Class II conforming to IEC 60536
- NEMA degree of protection: NEMA 13, NEMA 4X
- Ambient air temperature for operation: -40...70 °C
- Dimensions (H x L x W): 68mm x 68mm x 75mm
- Weight: 0.136 kg
Key Features
- IP66 rated for protection against dust and water.
- Compatible with XB5 Ø 22 mm control and signaling units.
- Designed for customer assembly with a single cut-out.
Professional Installation Requirements
- Professional installation is recommended for optimal safety and functionality.
Applications
- Industrial: Control and signaling units for emergency stop and switching off functions.
Standards & Compliance
- Complies with IEC 60947-5-5, UL 508, IEC 60947-5-4, JIS C8201-5-1, CSA C22.2 No 14
Environmental Benefits
- Packaging made with recycled cardboard.
- Green Premium product status.
Warranty Information
18 months warranty against manufacturing defects.
Available Now
The Clipsal Harmony XALD XALK Empty Enclosure is available now for immediate purchase. Ideal for industrial applications requiring robust control solutions.
