ZB4BW0B15

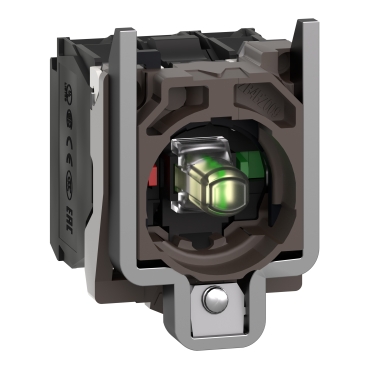

Harmony XB4, Complete body/contact assembly and light block, metal, universal LED, body/fixing collar, 1NO + 1NC, 24V AC DC


$81.20 List price: $121.80
+

Weight: 0.074 kg

Product Name/Title: Harmony XB4, Complete body/contact assembly and light block, metal, universal LED, body/fixing collar, 1NO + 1NC, 24V AC DC

Brand: Clipsal

SKU: ZB4BW0B15

Alternatively Known As: Harmony XB4 Light Block, Clipsal XB4 Assembly, Universal LED Contact Assembly

Technical Specifications
  • Rated supply voltage: 24V AC/DC at 50/60 Hz
  • Contact operation: slow-break
  • Light source: universal LED
  • Operating travel: 1.5 mm (NC), 2.6 mm (NO), 4.3 mm (total)
  • Operating force: 2 N (NC), 2.3 N (NO)
  • Electrical shock protection class: class I conforming to IEC 60536
  • Vibration resistance: 5 gn (f= 2-500 Hz)
  • Shock resistance: 30 gn (duration = 18 ms)
  • Dimensions (H x L x W): 47mm x 30mm x 30mm
  • Weight: 0.074 kg
Key Features
  • Complete body/contact assembly with universal LED light block.
  • Mechanical durability of 5,000,000 cycles.
  • Electrical durability of 1,000,000 cycles.
Professional Installation Requirements
  • Professional installation by a qualified technician is recommended for optimal performance.
Applications
  • Industrial: Control panels, machinery, automation systems
Standards & Compliance
  • Complies with IEC 60947 standards for safety and performance.
Environmental Benefits
  • Packaging made with recycled cardboard.
  • Packaging without single-use plastic.
Warranty Information

18 months warranty against manufacturing defects.

Available Now

The Clipsal Harmony XB4 Complete Body/Contact Assembly and Light Block is available now for immediate purchase. Ideal for industrial control applications.
