XB4BVM4

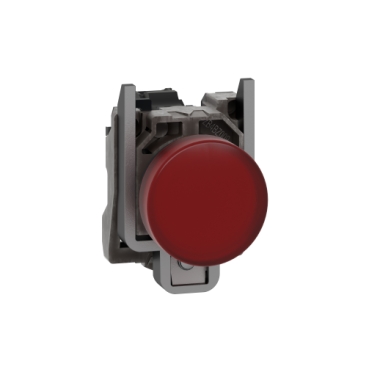

Harmony XB4, Pilot light, grey plastic, red, 22mm, universal LED, plain lens, 230...240V AC


$79.90 List price: $119.90
+

Weight: 0.080 kg

Product Name/Title: Harmony XB4, Pilot light, grey plastic, red, 22mm, universal LED, plain lens, 230...240V AC

Brand: Clipsal

SKU: XB4BVM4

Alternatively Known As: XB4 Pilot Light, LED Pilot Light, Industrial Pilot Light

Technical Specifications
  • Rated supply voltage: 230...240V AC 50/60 Hz
  • Current consumption: 14 mA
  • Resistance to high pressure washer: 7000000 Pa at 55 °C
  • Electrical shock protection class: Class I
  • Vibration resistance: 5 gn (f= 12-500 Hz)
  • Shock resistance: 30 gn (duration = 18 ms)
  • Surge withstand: 1 kV conforming to IEC 61000-4-5
  • Dimensions (H x L x W): 47mm x 54mm x 30mm
  • Weight: 0.08 kg
Key Features
  • Universal LED light source with a plain lens.
  • IP66, IP67, IP69K rated for high protection against dust and water.
  • Long service life of 100,000 hours at rated voltage.
Professional Installation Requirements
  • Professional installation is recommended for optimal performance and safety.
Applications
  • Industrial: Control panels, machinery, and equipment signaling
Standards & Compliance
  • Complies with IEC 60947-1 and other relevant standards.
Environmental Benefits
  • Green Premium product with environmentally friendly packaging.
Warranty Information

18 months warranty against manufacturing defects.

Available Now

The Clipsal Harmony XB4 Pilot Light is available now for immediate purchase. Ideal for industrial signaling applications.
