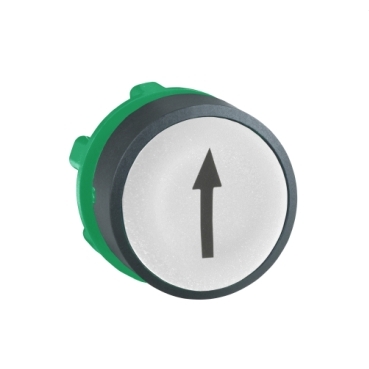

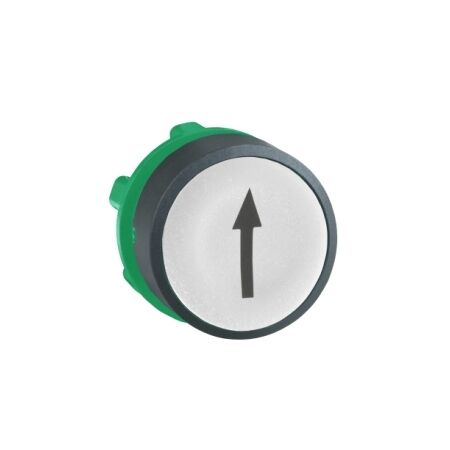

Product Name/Title: Harmony XB5, push-button head, plastic, flush, white, 22mm, spring return, marked UP ARROW
Brand: Clipsal
SKU: ZB5AA334
Alternatively Known As: Harmony XB5 Push Button, XB5 Push Button Head, Clipsal Push Button
Technical Specifications
- Type: Head for non-illuminated push-button
- Marking: Up arrow
- Mounting diameter: 22 mm
- Bezel material: Dark grey plastic
- Electrical composition code: C1, C2, C11, C15, SF1, SR1
- Overvoltage category: Class II conforming to IEC 60536
- Resistance to high pressure washer: 7000000 Pa at 55 °C
- Shock resistance: 30 gn for half sine wave acceleration
- Vibration resistance: 5 gn (f= 2-500 Hz)
- Dimensions (H x L x W): 29mm x 29mm x 22mm
- Weight: 0.018 kg
Key Features
- Spring return mechanism with marked up arrow.
- IP66, IP67, IP69, and IP69K rated for high protection against dust and water.
- Mechanical durability of 10 million cycles.
Professional Installation Requirements
- Professional installation is recommended for optimal performance and safety.
Applications
- Industrial: Control panels, machinery, automation systems
Standards & Compliance
- Complies with IEC 60947-5-1 and other relevant standards.
Environmental Benefits
- Green Premium product with packaging made from recycled cardboard.
Warranty Information
18 months warranty against manufacturing defects.
Available Now
The Clipsal Harmony XB5 Push-Button Head is available now for immediate purchase. Ideal for industrial control applications.
