XVBC5B6

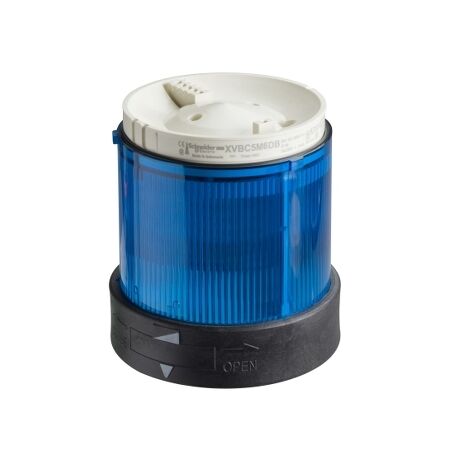

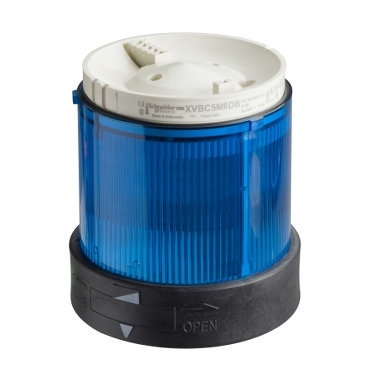

Harmony XVB, Indicator bank, illuminated unit, plastic, blue, 70mm, flashing, integral LED, 24V AC/DC


$296.40 List price: $444.60
+

Weight: 0.170 kg

Product Name/Title: Harmony XVB, Indicator bank, illuminated unit, plastic, blue, 70mm, flashing, integral LED, 24V AC/DC

Brand: Clipsal

SKU: XVBC5B6

Alternatively Known As: Indicator Light, LED Signal Light, Flashing Indicator, Industrial Signal Light

Technical Specifications
  • Rated supply voltage: 24V AC/DC
  • Current consumption: < 47 mA AC/DC
  • Material: Polycarbonate
  • Flashing frequency: 1 Hz
  • Rated insulation voltage: 250 V
  • Electrical shock protection class: Class I on support tube, Class II on base unit
  • Pollution degree: 2
  • Dimensions (H x L x W): 63mm x 70mm x 70mm
  • Weight: 0.17 kg
Key Features
  • Illuminated unit with integral blue LED for clear visibility.
  • Flashing signaling type for attention-grabbing alerts.
  • IP65 rated on fixing base and IP66 on base unit for robust protection.
Professional Installation Requirements
  • Professional installation is recommended for optimal safety and performance.
Applications
  • Industrial: Manufacturing facilities, machinery signaling
  • Commercial: Warehouses, distribution centers, safety signaling
Standards & Compliance
  • Complies with IEC 60947-5-1 for safety and performance standards.
Environmental Benefits
  • Green Premium product with environmentally friendly packaging.
Warranty Information

18 months warranty against manufacturing defects.

Available Now

The Clipsal Harmony XVB Illuminated Indicator Bank is available now for immediate purchase. Ideal for industrial and commercial signaling applications.

XVBC5B6 (XVBC5B6, 670 Kb) [Download]
