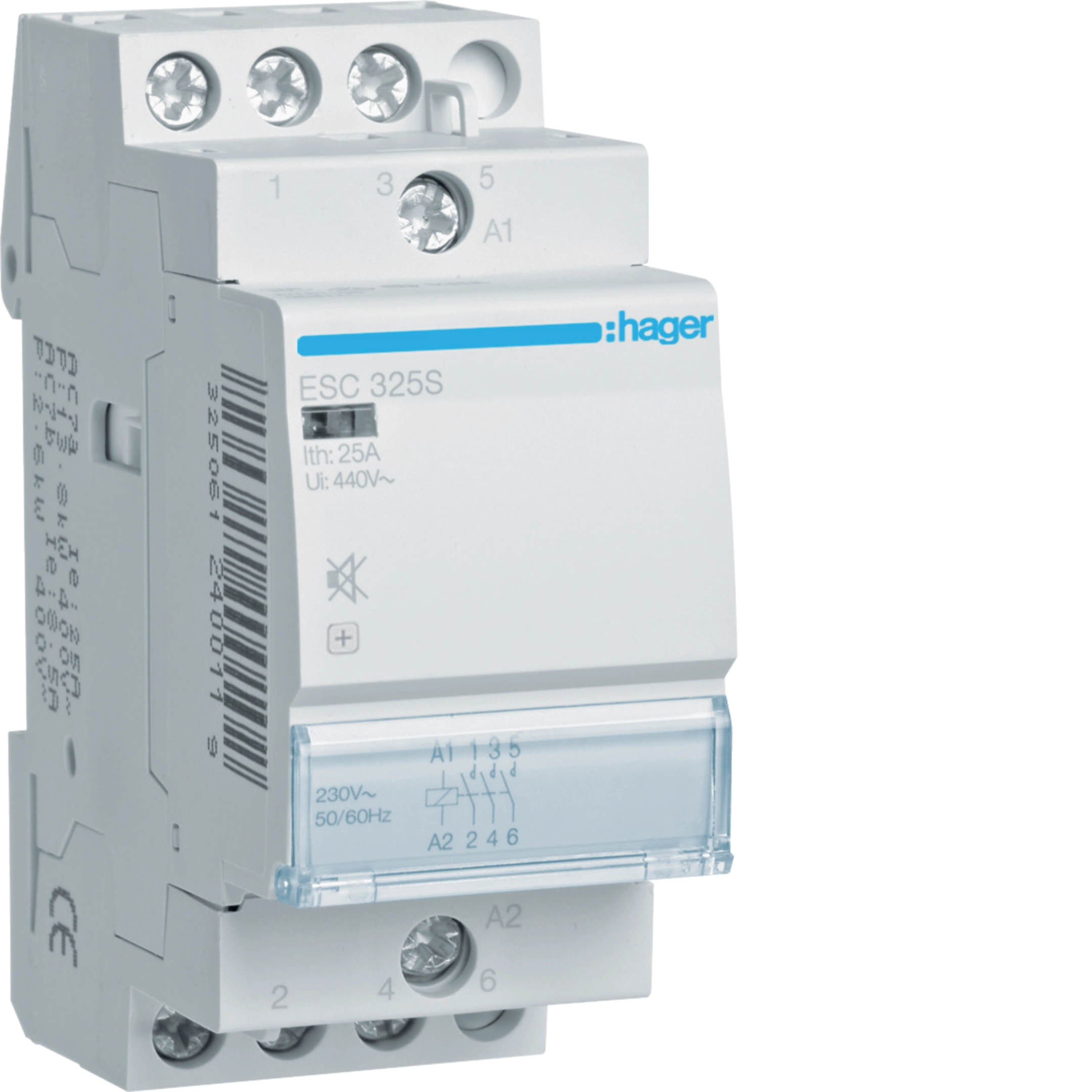

Product Name/Title: Humfree Contactor 25A, 3NO, 230V~50/60Hz
Brand: Hager
SKU: ESC325S
Alternatively Known As: Humfree ESC325S Contactor
Technical Specifications
- Connection: Type of contacts 3NO
- Number of contacts: 3
- Cross-section flexible conductor: 1 - 6 mm²
- Cross-section rigid conductor: 1 - 10 mm²
- Rated current: 25 A
- Number of modules: 2
- Frequency: 50 - 60 Hz
- Rated impulse withstand voltage Uimp: 4000 V
- Rated insulation voltage Ui: 440 V
- Command voltage AC: 230 - 230 V
- Command voltage DC: 0 - 0 V
- Operating temperature: -10 - 50 °C
- Storage/transport temperature: -40 - 80 °C
- Number of mechanical operations: 100000
- Electric endurance in number of cycles: 30000
- Total power loss under IN: 7,50 W
- Inrush power absorbed: 3,20 VA
- Number of NO contacts: 3
- Number of NC contacts: 0
- Nominal tightening torque: 1,20 - 1,20 Nm
- Dimensions (H x L x W): 83mm x 60mm x 35.75mm
- Weight: 0.15 kg
Key Features
- Efficient contactor for power management.
- Supports flexible and rigid conductor connections.
- Endurance with high mechanical and electric cycles.
- Compact size with reliable performance.
Professional Installation Requirements
- Installation by a qualified electrician is recommended for safe and optimal performance.
Applications
- Residential electrical installations.
- Commercial power management solutions.
- Industrial applications requiring reliable contactors.
Standards & Compliance
- Conforms to AS/NZS IEC 60947-4-1.
Environmental Benefits
- Engineered for efficient energy use in electrical systems.
- Reduces electrical waste with long-lasting components.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
Available for immediate purchase, ideal for residential, commercial and industrial applications requiring reliable contact management.
