ESC263S

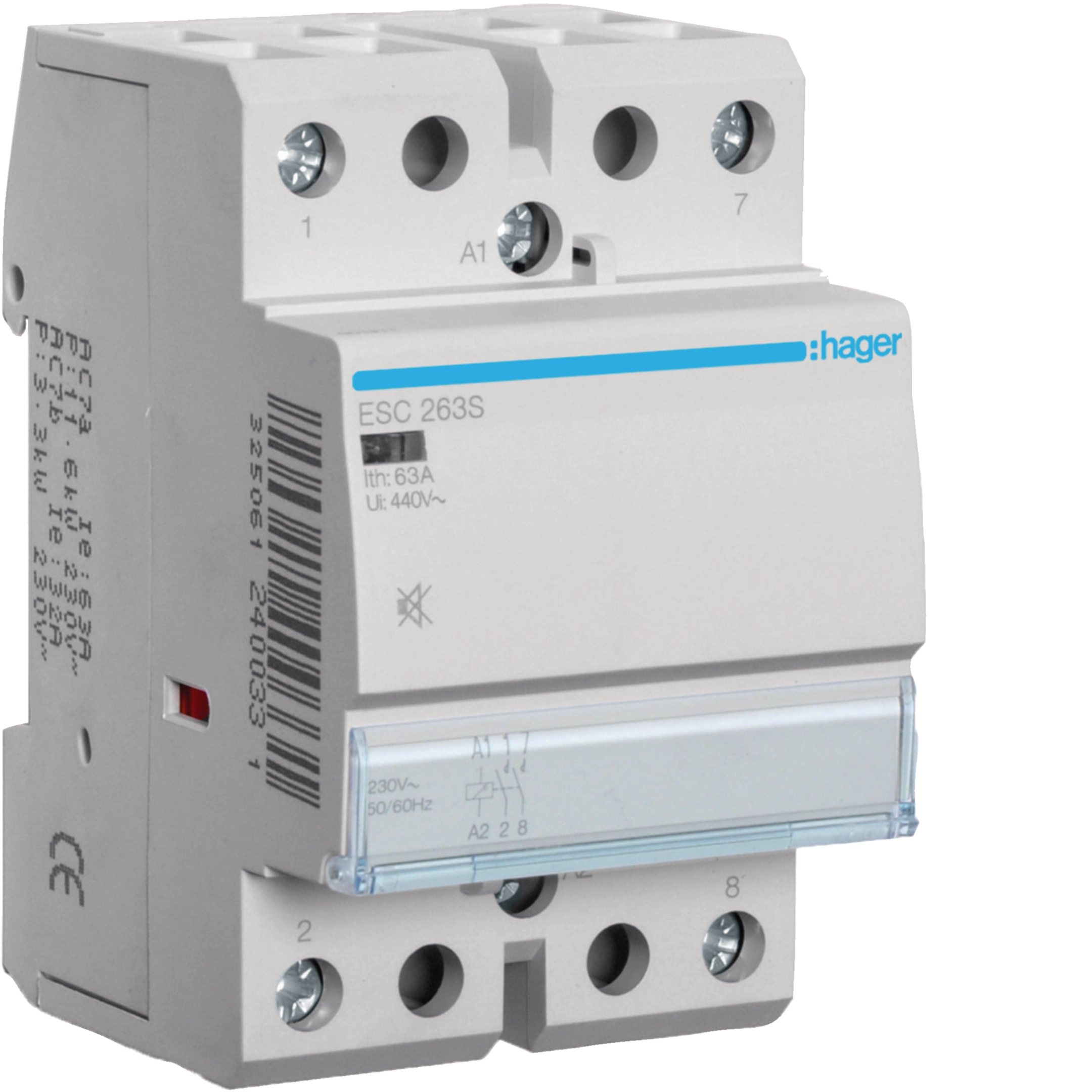

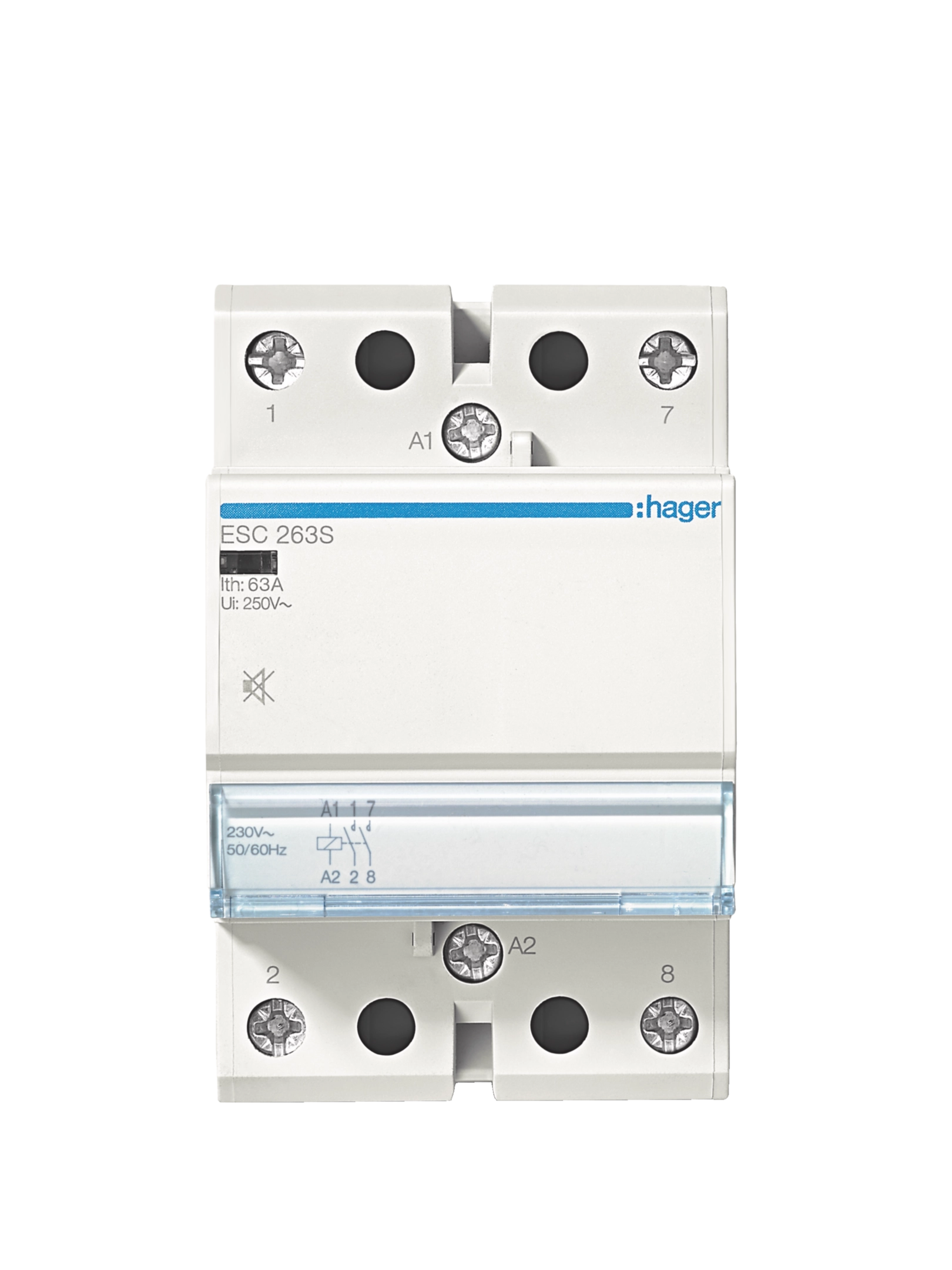

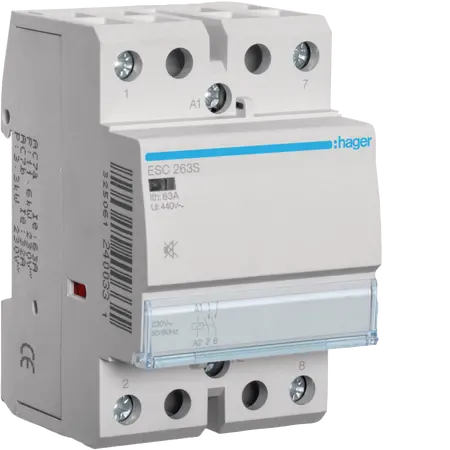

Humfree Contactor 63A, 2NO, 230V~50/60Hz


$150.70 List price: $192.70
+

Weight: 0.500 kg

Product Name/Title: Humfree Contactor 63A, 2NO, 230V~50/60Hz

Brand: Hager

SKU: ESC263S

Alternatively Known As: Hager Contactor, 63A Contactor, DIN Rail Contactor

Technical Specifications
  • Type of contacts: 2NO
  • Rated current: 63A
  • Rated insulation voltage: 440V
  • Rated impulse withstand voltage: 4000V
  • Frequency: 50-60Hz
  • Total power loss under IN: 14.50W
  • Inrush power absorbed: 5.20VA
  • Cross-section flexible conductor: 1.5 - 16 mm²
  • Cross-section rigid conductor: 1.5 - 25 mm²
  • Dimensions (H x L x W): 85mm x 60mm x 54mm
  • Weight: 0.5 kg
Key Features
  • Rated current of 63A with 2 normally open contacts.
  • Operating temperature range from -10 to 50 °C.
  • High endurance with 100,000 mechanical operations.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Suitable for controlling motors and lighting circuits.
  • Commercial: Ideal for HVAC systems and other electrical installations.
Standards & Compliance
  • Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
  • RoHS compliant, contributing to reduced environmental impact.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Humfree Contactor 63A, 2NO, 230V~50/60Hz is available now for immediate purchase. Ideal for industrial and commercial electrical applications.
