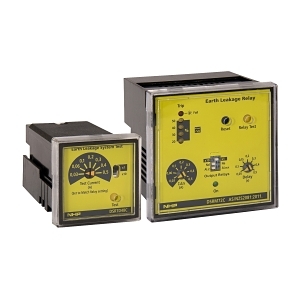

Product Name/Title: IME Earth Leakage Relay 2081 Mining Kit Panel Mount Relay and Test Unit 240V AC 0.03 to 5A
Brand: NHP
SKU: DSRM240VC
Alternatively Known As: Earth Leakage Relay, Residual Current Monitoring Relay, Mining Relay
Technical Specifications
- Voltage Type: AC
- Rated Control Supply Voltage: 204-264 V
- Rated Frequency: 47-63 Hz
- Number of Contacts: 2 (Change Over Contact)
- Rated Burden: 2.5 VA
- Adjustable Current Range: 0.03-5 A
- Min Adjustable Delay on Energization Time: 0.05 s
- Max Permitted Delay on Energization Time: 0.5 s
- Power Consumption: 3.5 W
- Transformer Connection: Yes
- With Alarm Function: Yes
- Operating Temperature: -5-60 °C
- Dimensions (H x L x W): 80mm x 120mm x 100mm
- Weight: 1.5 kg
Key Features
- Adjustable current range from 0.03 to 5A.
- IP40 rated front side for protection against solid objects.
- Surface and panel mounting options for versatile installation.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Mining: Safety monitoring for electrical systems in mining operations
- Industrial: Protection against earth leakage in various industrial applications
Standards & Compliance
- Complies with AS/NZS 3820 for essential safety requirements for electrical equipment.
Environmental Benefits
- Enhances safety in electrical systems, reducing the risk of electrical hazards.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The IME Earth Leakage Relay 2081 Mining Kit Panel Mount Relay and Test Unit 240V AC 0.03 to 5A is available now for immediate purchase. Ideal for mining and industrial applications.
Non-Returnable & Non-Cancellable
