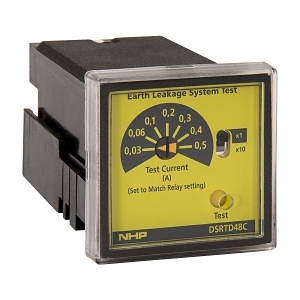

Product Name/Title: IME Earth Leakage Relay 2081 Mining Panel Mount 48 x 48mm Test Unit 110V Ac 0 03Ma 5A
Brand: NHP
SKU: DSRTD48C110
Alternatively Known As: Earth Leakage Relay, Residual Current Monitoring Relay, Mining Relay
Technical Specifications
- Voltage Type for Actuating: AC
- Rated Control Supply Voltage (US) at AC 60 Hz: 97-127 V
- Rated Frequency: 47-63 Hz
- Rated Voltage: 97-127 V
- Type of Electric Connection: Other
- Adjustable Current Range: 0.03-5 A
- Reset Function: Automatic - No
- Transformer Connection: Yes
- Mounting Method: Surface and panel mounting
- Housing Material: Polycarbonate (PC)
- Degree of Protection (IP Front Side): IP40
- Degree of Protection (IP Rear Side): IP20
- Operating Temperature: -5 to 60 °C
- Dimensions (H x L x W): 48mm x 81mm x 48mm
- Weight: 0.5 kg
Key Features
- Adjustable current range from 0.03 to 5 A.
- Surface and panel mounting options.
- Polycarbonate housing for durability.
- IP40 front side protection and IP20 rear side protection.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Mining: Suitable for use in mining operations requiring earth leakage protection.
- Industrial: Ideal for various industrial applications where electrical safety is paramount.
Standards & Compliance
- Complies with AS/NZS 3820 for essential safety requirements for electrical equipment.
Environmental Benefits
- Enhances energy efficiency by enabling accurate monitoring of electrical consumption.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The IME Earth Leakage Relay 2081 Mining Panel Mount is available now for immediate purchase. Ideal for mining and industrial applications requiring reliable earth leakage protection.
