RD3AF1H

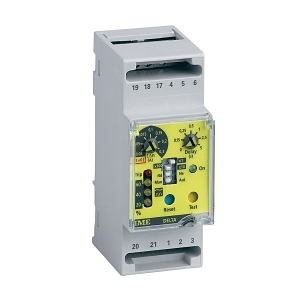

IME Earth Leakage Relay DIN Mount 2Pole 1 Changeover Contact 24 to 150V DC


$1,661.70 List price: $2,206.60
+

Weight: 0.500 kg

Product Name/Title: IME Earth Leakage Relay DIN Mount 2Pole 1 Changeover Contact 24 to 150V DC

Brand: NHP

SKU: RD3AF1H

Alternatively Known As: Residual Current Relay, Earth Leakage Circuit Breaker, RCD Relay

Technical Specifications
  • Voltage Type for Actuating: DC
  • Rated Control Supply Voltage: 20-150 V
  • Rated Frequency: 47-63 Hz
  • Number of Contacts: 1 Changeover Contact
  • Rated Burden: 2.5 VA
  • Type of Electric Connection: Screw connection
  • Max Permitted Delay on Energization Time: 5 s
  • Power Consumption: 2 W
  • Transformer Connection: Yes
  • With Alarm Function: Yes
  • Degree of Protection: IP20
  • Operating Temperature: -10 to 55 °C
  • Dimensions (H x L x W): 89mm x 66mm x 35mm
  • Weight: 0.5 kg
Key Features
  • Adjustable current range from 0.03 to 30 A.
  • Automatic reset function for enhanced safety.
  • DIN rail mounting for easy installation.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Machinery and equipment protection
  • Commercial: Electrical installations requiring earth leakage protection
  • Residential: Safety in home electrical systems
Standards & Compliance
  • Complies with AS/NZS 3820 for essential safety requirements for electrical equipment.
Environmental Benefits
  • Long lifespan reduces waste and environmental impact.
Warranty Information

2 years warranty against manufacturing defects.

Available Now

The IME Earth Leakage Relay DIN Mount is available now for immediate purchase. Ideal for industrial, commercial, and residential applications requiring earth leakage protection.
