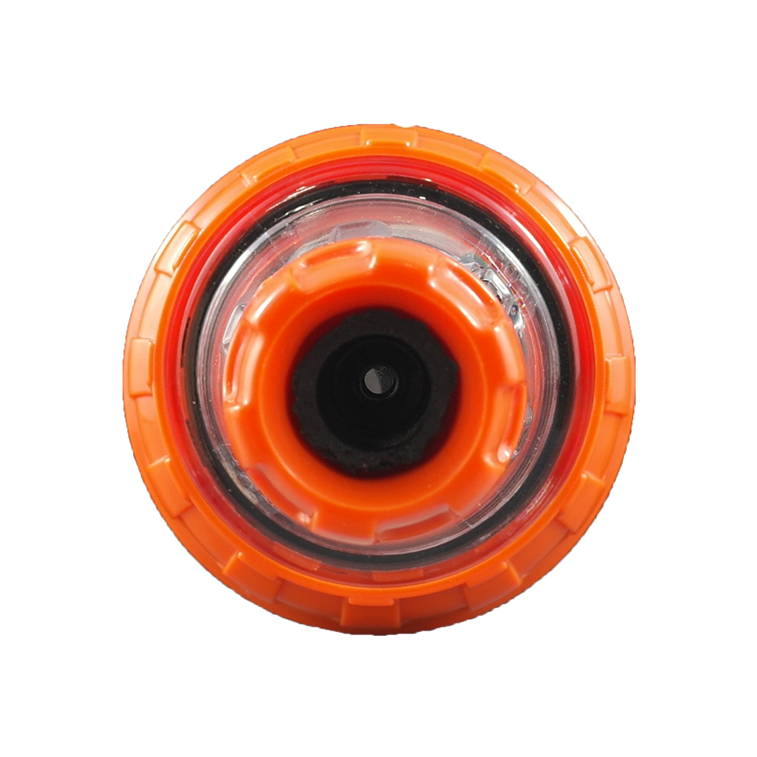

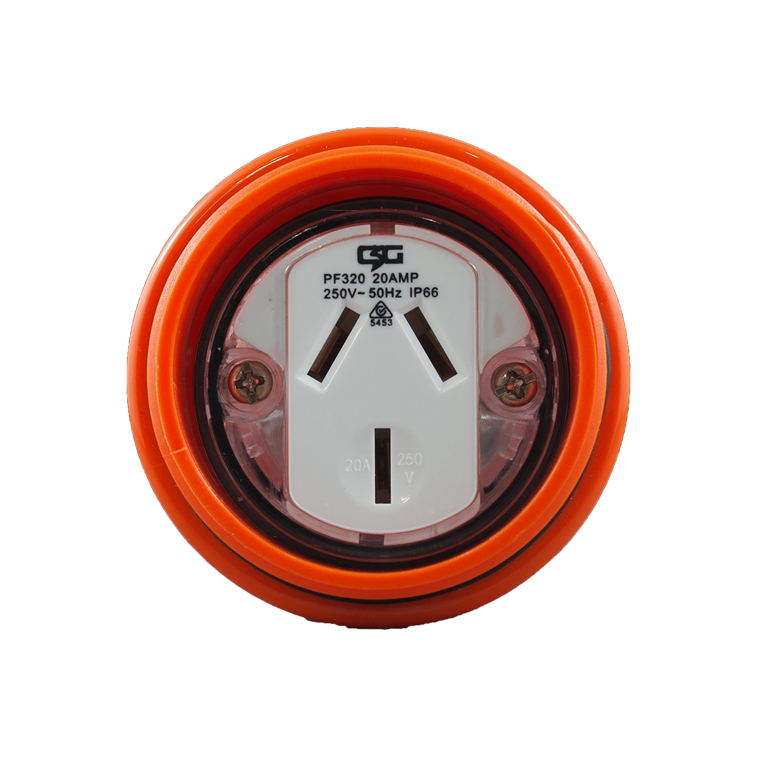

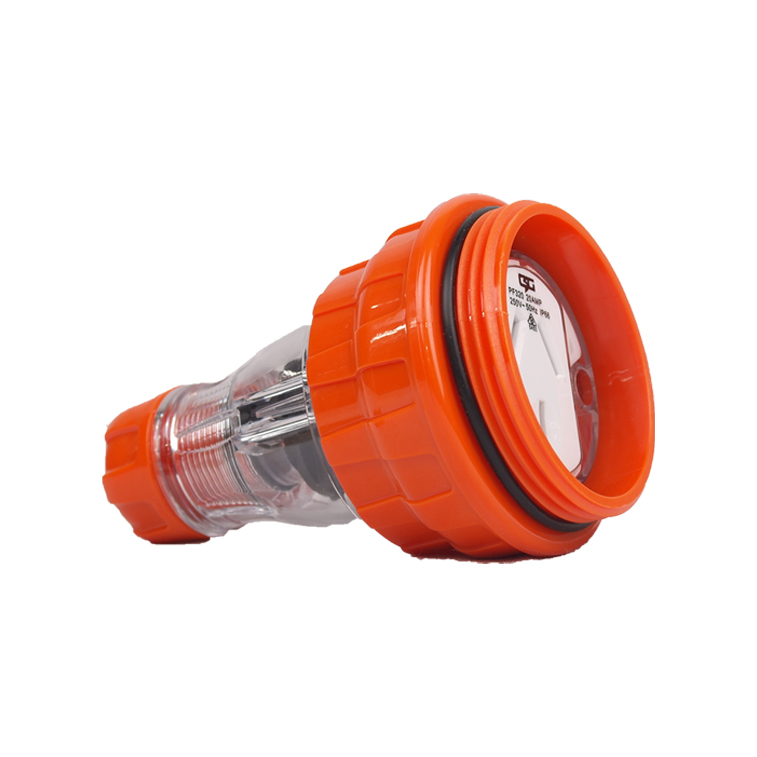

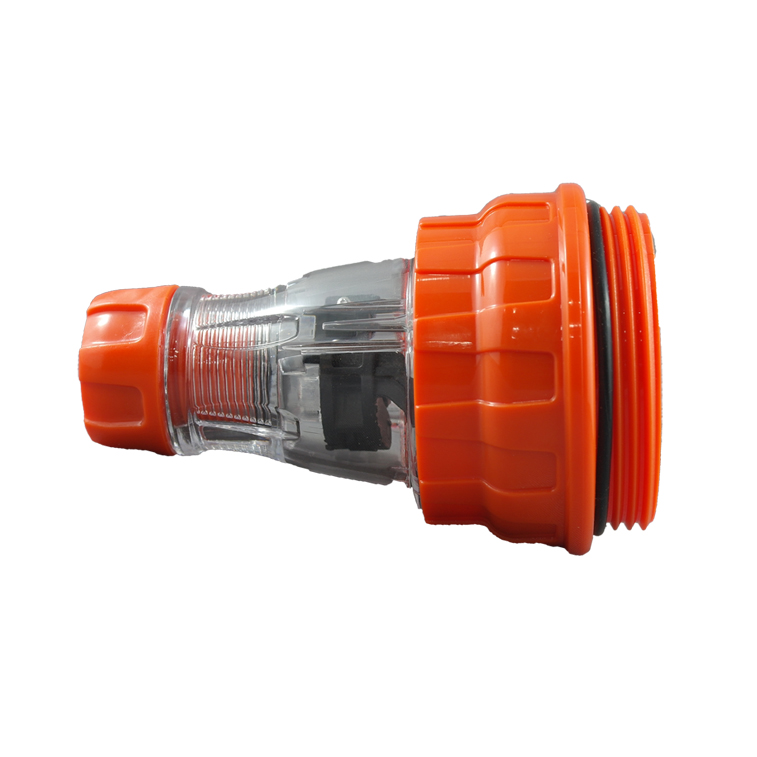

Product Name/Title: IP66 3 Pin Extension Socket – 250V 20A FLAT PINS
Brand: Connected Switchgear
SKU: PF320
Alternatively Known As: IP66 Extension Socket, 3 Pin Extension Lead, Heavy Duty Extension Socket
Technical Specifications
- Voltage: 250V
- Current: 20A
- IP Rating: IP66
- Configuration: 3 Flat Pins
- Power: AC
- Poles: Single Phase
- Max Cable Size: 6mm²
- Dimensions (H x L x W): 117mm x 70mm x 70mm
- Weight: 0.5 kg
Key Features
- Impact Resistant material for durability in industrial applications.
- Transparent housing for visual checking of connections.
- Fitted with a captive ring for secure attachment to socket outlets.
- Internal cable clamp prevents twisting of the cable.
- Designed to suit flexible hose.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Suitable for harsh environments requiring durable electrical connections.
- Commercial: Ideal for construction sites and outdoor events.
Standards & Compliance
- Complies with AS/NZS 3120:2011+A1 for safety and performance standards.
Environmental Benefits
- Durable design reduces the need for frequent replacements, minimizing waste.
Warranty Information
5 years warranty against manufacturing defects, covering replacement and installation by an authorized electrician.
Available Now
The IP66 3 Pin Extension Socket – 250V 20A FLAT PINS is available now for immediate purchase, ideal for industrial and commercial applications.
