IPD163C

IPD Single-Phase Multifunction Meter 63Amp


$369.30 List price: $462.90
+

In stock

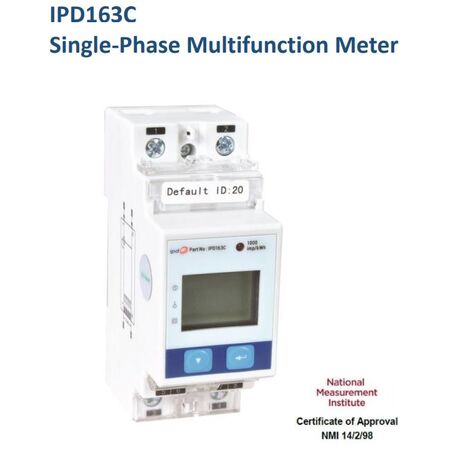

IPD Single-Phase Multifunction Meter 63Amp

Overview :

IPD163C - Single-Phase Multifunction Meter is IPD’s latest offer for the low voltage energy metering market featuring DIN rail mount, compact construction, 63A direct connect input and high accuracy measurements. It complies with the requirements of National Measurement Institute (NMI) and is certified for trade use (billing applications). The meter has Class 1 kWh accuracy and high level Modbus RTU protocol. The IPD163C is a vital component of an intelligent, multifunction monitoring solution for any Billing or Energy Management System.

Features

 Class 1 accuracy to IEC 62053-21

 63A direct connect

 Low starting current @ 20mA

 Multifunction measurements

 Voltage, Current, kW, kvar, kVA, PF and Frequency

 kWh and kvarh Imp/Tot/Net and kVAh

 6½ digit Multifunction LCD Display

 Self- powered, no external control power required

 kWh LED Pulse Output

 Solid State Energy Pulse Output @ 1000 imp/kWh

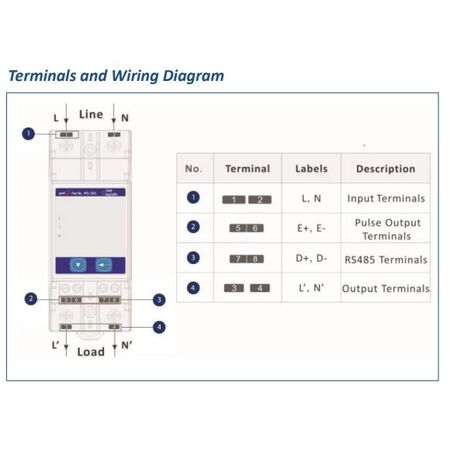

 RS-485 port with Modbus RTU protocol

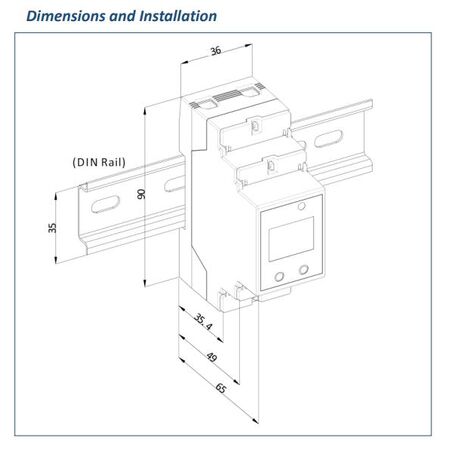

 DIN rail mounting

NMI/SUB-BILLING METERING

  • IPD Part No.: IPD163C
    Voltage: 240VAC
    Full Description: DIGITAL KWH METER 63A , DIRECT CONNECT 240V RS485 MODBUS COMMUNICATION DIN MTG.
    Frequency: 45Hz-65Hz
    Current Imax: 63A


Please check the Attachment Tab for Data sheet.
