Matchmaster has a broad range of band filters, triplexers and diplexers
Matchmaster has block specific filters for blocks A â E plus 694MHz and 652MHz low pass filters for general 4G (LTE) interference reduction

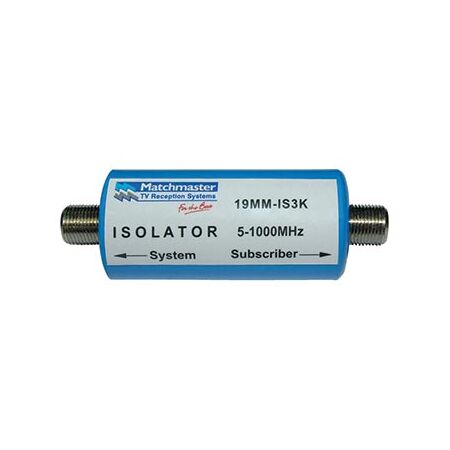

We also offer a range of Isolators and Surge arrestors for 75 Ohm systems up to 3GHz
Designed to be used both indoors and outdoors
View More Filters
Protective metal housingSmall compact designFrequency range 5-1000MHz Comes with built in 3KV high voltage capacitor
Frequency (MHz)
Typical
QC Standard
Insertion Loss (dB)
5-30
1.2
1.5
30-550
1
1.2
550-860
1.2
1.5
860-1000
1.2
1.5
Return Loss (dB)
5-30
11
9
30-550
17
15
550-860
14
12
860-1000
14
12
Impulse High Voltage (3KVDC 3s 1mA)
No Arc or Through
