66C550

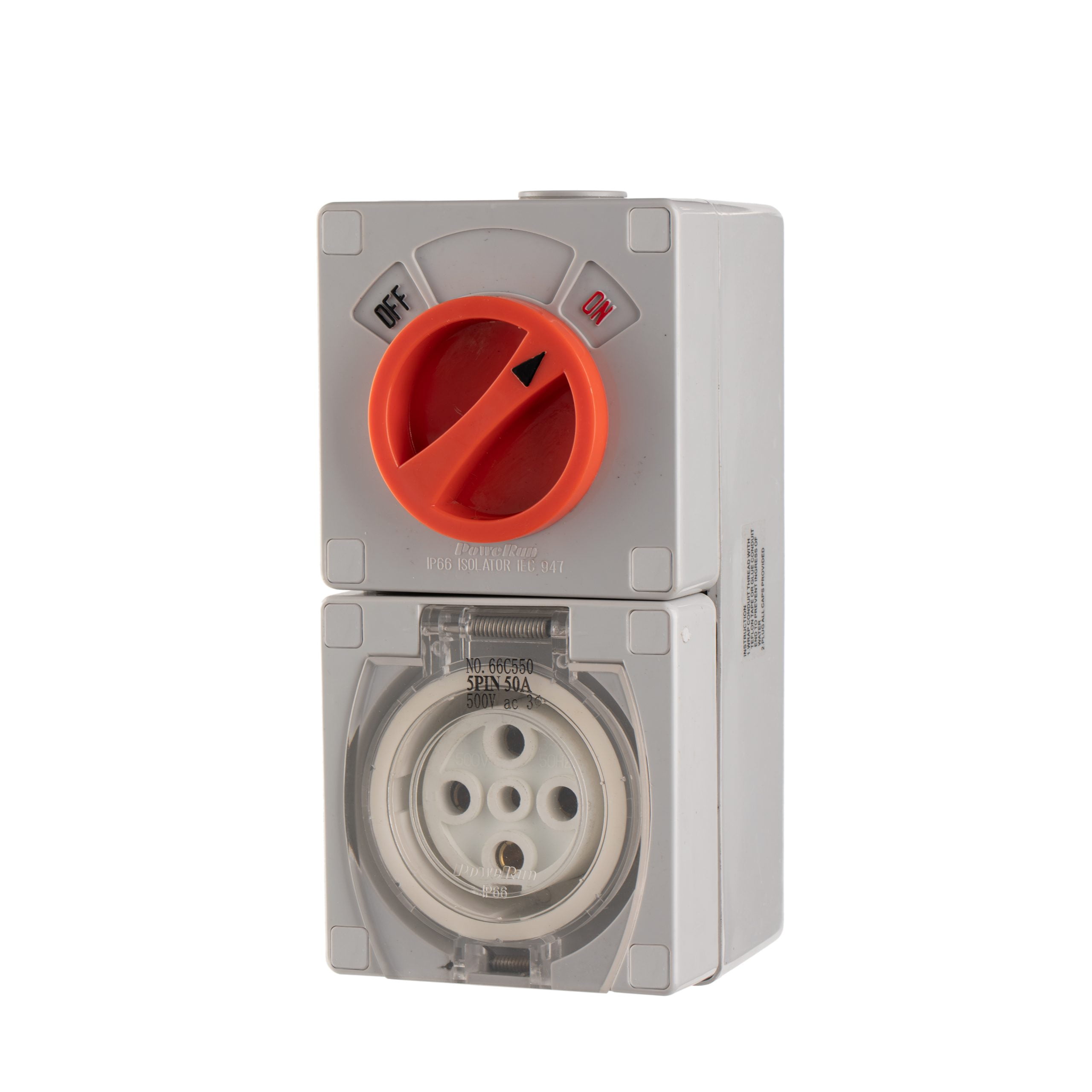

Isolator 5 Pin Combination 50A IP66


$92.50 List price: $120.60
+

Weight: 1.500 kg

Product Name/Title: Isolator 5 Pin Combination 50A IP66

Brand: Transco

SKU: 66C550

Alternatively Known As: 50A IP66 Isolator, 5 Pin Switched Socket Combo

Technical Specifications
  • Power Rating: 50A
  • Voltage: 500V
  • IP Rating: IP66
  • Material: Impact polycarbonate
  • Number of Outlets: 1
  • Cable Entries: Top 25mmx2, Back 25mmx2
  • Pin Type: Round pin
  • Poles: 3P + N + E
  • Dimensions (H x L x W): 77mm x 190mm x 102mm
  • Weight: 1.5 kg
Key Features
  • IP66 rated for protection against dust and water ingress.
  • Lockable switch for added safety.
  • Impact-resistant polycarbonate material.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Factories, workshops, and outdoor installations
  • Commercial: Construction sites and heavy machinery operations
Standards & Compliance
  • Complies with AS 60529:2004/NZS IEC 60947.1:2015 Annex C
  • AS/NZS 3121:2002
  • AS/NZS 3100:2009+A1-A4
Environmental Benefits
  • UV resistant material enhances durability and longevity.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Transco 5 Pin Combination 50A IP66 Isolator is available now for immediate purchase. Ideal for industrial and commercial applications requiring robust electrical solutions.
