Save 38%
LXMCB106

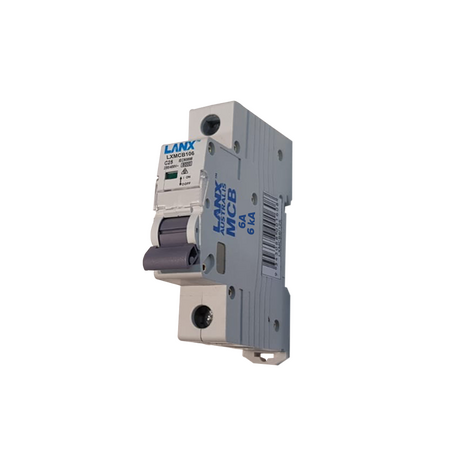

LANX 6A Single Phase Circuit Breaker 1 Pole 6KA C Curve MCB

$2.20 List price: $3.52
+ −
30 Days Return Delivery Options
Weight: 0.100 kg

1 Pole 6A Single Phase Circuit Breaker 6kA C Curve MCB

Construction and Features
  • Fine and unique Appearance
  • Short circuit and overload dual-protection performance
  • High-breaking capacity (10kA) that is leading among the world similar products
  • Unique Label, transparent window
  • Convenient and reliable installation mode
Technical Data
  • Number of Pole: 1P
  • Rated Current: 6A
  • Rated working voltage: 240/415V
  • Rated frequency: 50/60Hz
  • Rated frequency(miniature circuit breaker): 400V
  • Curve (miniature circuit breaker): B, C, D
  • High short-circuit breaking capacity: 6000A(kA)
  • Instantaneous tripping current: 5ln (B type); 10ln (C Type); 20ln (D type)
  • Instantaneous non-tripping current: 3ln (B Type); 5ln (C Type); 10ln (D Type)
  • Mechanical Life: 4000 times
  • Degree of protection: IP20
  • Wiring mode: Front wiring
  • Connecting conductor: Up to and including 16m²
  • Wiring Height: 21.5mm
