LS105V

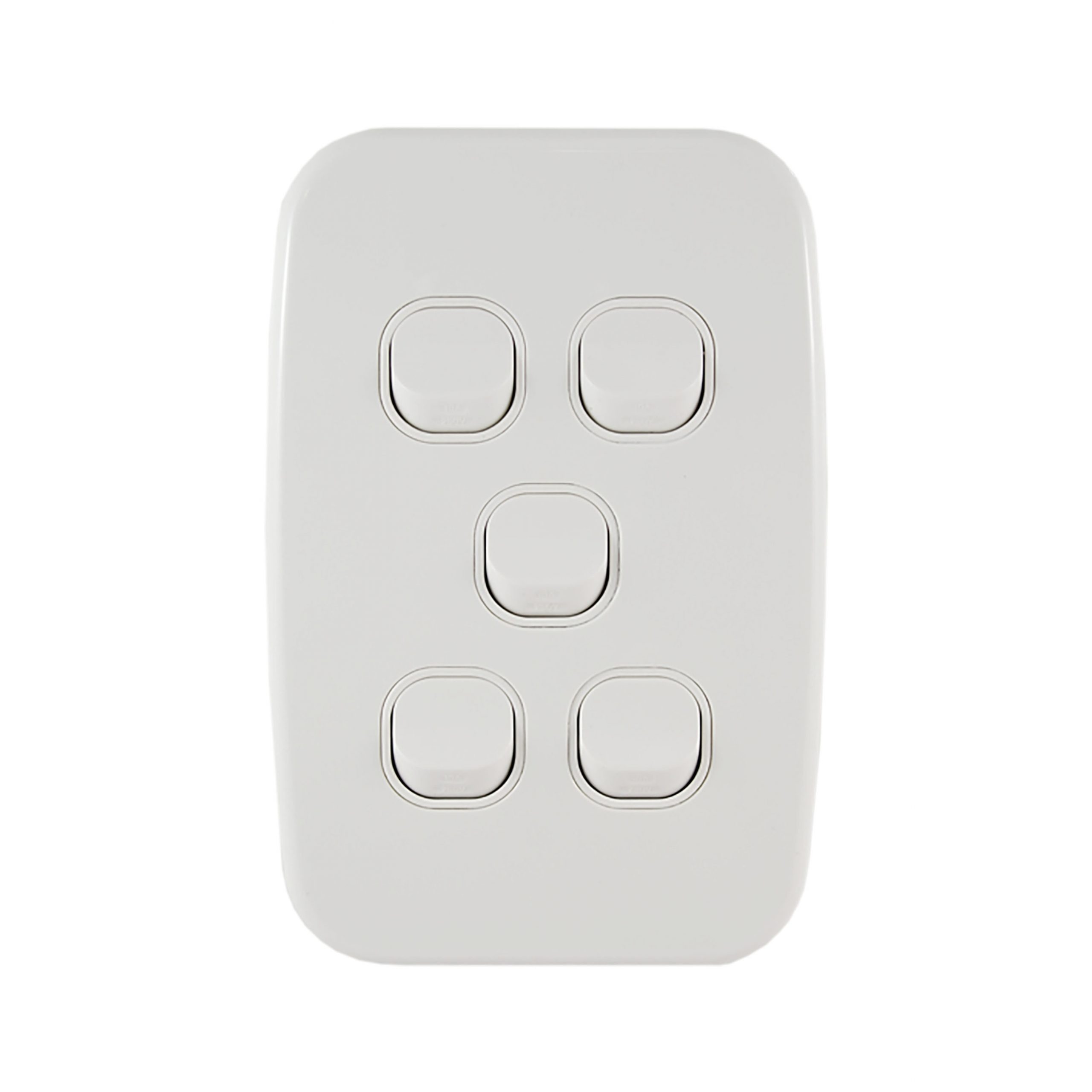

Light Switch 5 Gang – VERTICAL


$20.50 List price: $26.80
+

Weight: 0.500 kg

Product Name/Title: Light Switch 5 Gang – VERTICAL

Brand: Connected Switchgear

SKU: LS105V

Alternatively Known As: 5 Gang Light Switch, Vertical Light Switch, LUNA Series Switch

Technical Specifications
  • Product Code: LS105V
  • Voltage: 240V AC
  • Amperage: 10A
  • Configuration: 5 gang, 2 way switching
  • Material: Polycarbonate housing
  • Internal Components: Copper phosphorus bronze
  • Switch Contacts: Composite silver nickel
  • Terminal Screws: Brass
  • Dimensions (H x L x W): 120mm x 10mm x 84mm
  • Weight: 0.5 kg
Key Features
  • Slimline 6.5mm thick design
  • Manufactured from virgin polycarbonate material
  • Rated at 240V AC 10A
  • Switch contacts made from silver nickel coating
  • Brass terminal screws
  • Available in white and black with optional cover plates
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Residential: Homes, apartments, offices
  • Commercial: Retail, hospitality, workspaces
Standards & Compliance
  • Complies with AS/NZS 3133:2013+A1-2 and AS/NZS 3100:2017+A1-3 for safety and performance standards.
Environmental Benefits
  • Durable materials reduce the need for frequent replacements, minimizing waste.
Warranty Information

5 years warranty against manufacturing defects.

Available Now

The Light Switch 5 Gang – VERTICAL is available now for immediate purchase. Ideal for residential and commercial spaces, combining modern design with durable performance.

LS105V (LUNA-Switches-and-Socket-Outlets-1.pdf, 888 Kb) [Download]
