DM-9960

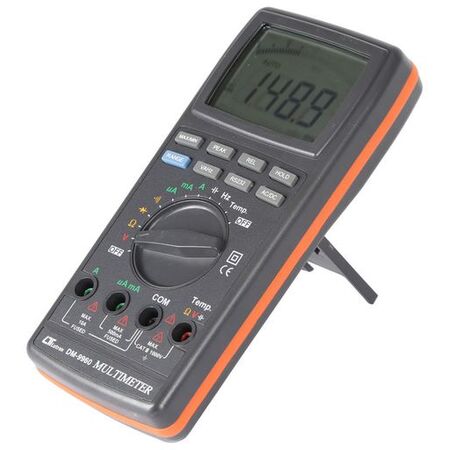

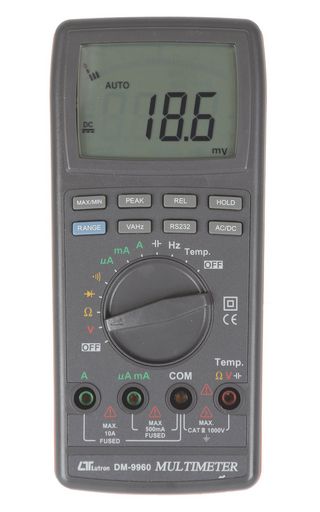

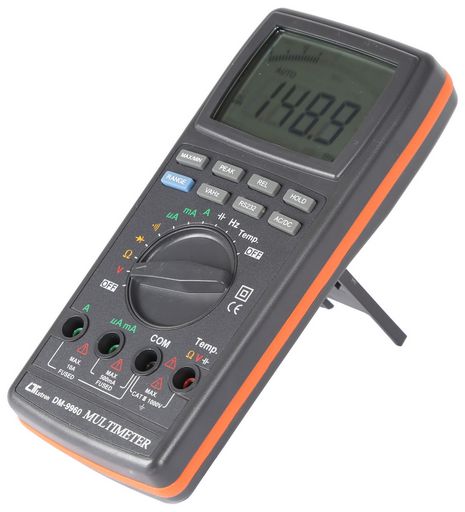

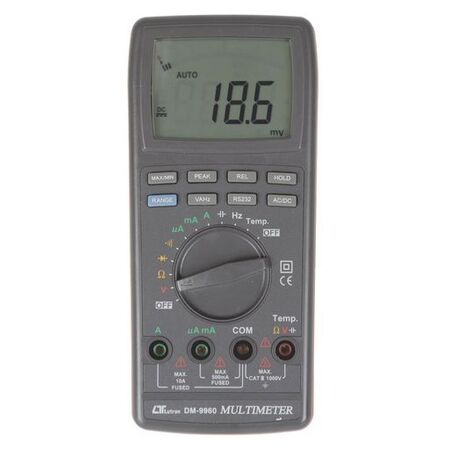

Lutron Auto Range Digital Multimeter Dm9960 Dc - Acv - Dca - Aca


$170.00 List price: $299.90
+

Weight: 3.000 kg

DIGITAL MULTIMETER + TEMPERATURE - LUTRON

Lutron DM-9960 Digital Multimeter with temperature measurement.
Meet CAT III 1000 V.
4000 counts A/D, high resolution.
Auto range with manual range selection.
Large LCD display with bar graph indicator.
Multi function measurement. DCV, ACV, DCA, ACA, Resistance, Capacitance, Frequency, Temperature, Diode, Continuity beeper.
Max./Min., Peak value, Relative, Data hold.
°C/°F thermometer (requires temperature probe)。VAHz button, when execute the ACV, ACA function also can measure the frequency of signal.
Build fuse for Both 10 A, mA, uA current range.
10 M ohm input impedance for voltage circuit.
Built-in overload protection for most ranges.
Operates from 2x AAA batteries
Includes black and red test leads

DCV (+/- 0.5% to 0.8%): 400mV to 1000V
ACV (+/- 1%): 400mV to 1000V
DCI (+/- 1% to 1.5%): 0.4mA to 10A
ACI (+/- 1% to 1.5%): 0.4mA to 10A
Resistance: 400Ω to 40MΩ
Capacitance: 4nF to 40 mF
Frequency: 4kHz to 40MHz
Temperature: -20°C to 750°C (requires probe)

Diode and continuity


CodeDM-9960
Dimensions185x88x40mm
Display65x48mm
