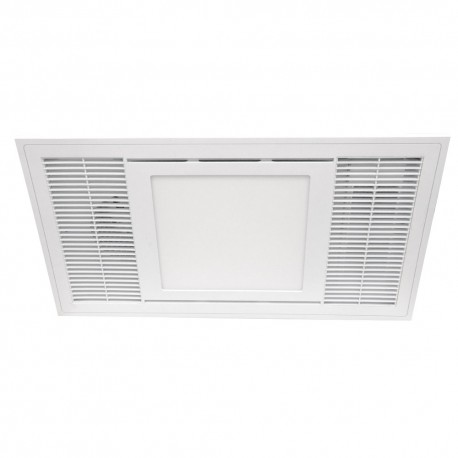

Product Name/Title: Madrid White - MAD31FHLX
Brand: Ventair
SKU: MAD31FHLX
Alternatively Known As: Madrid Bathroom Heater, Ventair 3 in 1 Bathroom Unit, Bathroom Fan Heater with LED Light
Technical Specifications
- Exhaust Motor Power: 50w
- Air Delivery: 330m³h (92L/sec)
- Noise Level: 49.5dB(A)
- Ball bearing motor: Yes
- Side outlet duct size: Ø125mm
- IP Rating: IPX2
- Centre Light: 20w natural white centre LED light panel
- Heat Wattage (L/H): 1400/2000w
- Heater Fan Power: 40w
- Power Input: 220-240V~50Hz
- Light Colour: Natural White 4000K
- Lumens: 1900Lm
- Dimensions (H x L x W): 350mm x 200mm x 630mm
- Weight: 3.0 kg
Key Features
- High performance energy-efficient fan heater.
- Integrated LED light and exhaust fan.
- Stylish ultra slim design.
- Self-regulating two heat level fan heater.
- Dedicated high performance extraction fan.
- Premium 20 watt LED light panel with high lumen output.
Professional Installation Requirements
- Professional installation by a qualified electrician is required.
Applications
- Residential: Bathrooms, ensuites
- Commercial: Hotels, health clubs, gyms
Standards & Compliance
- Complies with AS/NZS 60335 for safety and performance standards.
Environmental Benefits
- Energy efficient design reduces power consumption.
Warranty Information
5 years warranty (2 years on spare parts, additional 3 years replacement only for fan and exhaust motors).
Available Now
The Ventair Madrid White 3 in 1 Bathroom Unit is available now for immediate purchase. Ideal for residential and commercial bathroom spaces.
