NDN110A

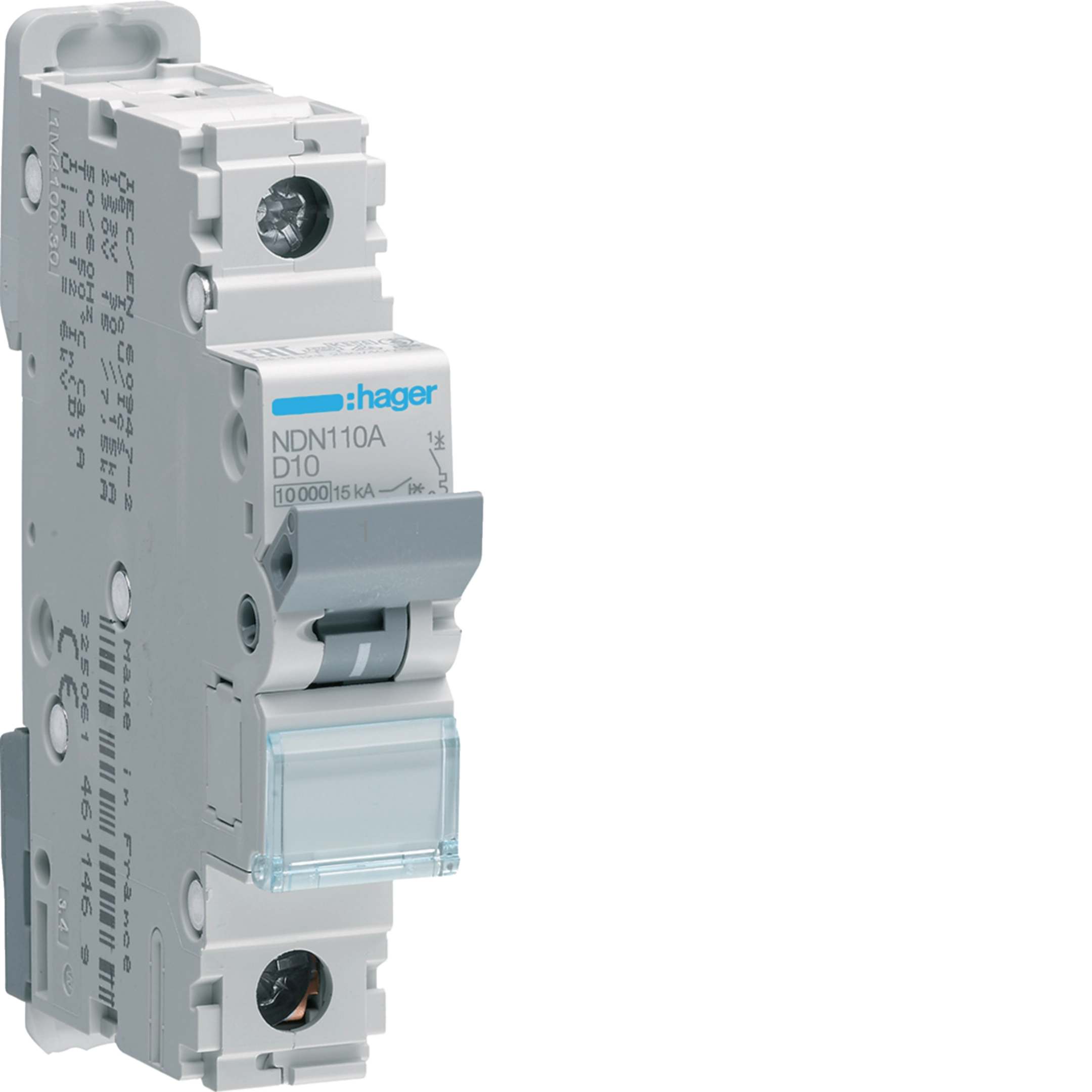

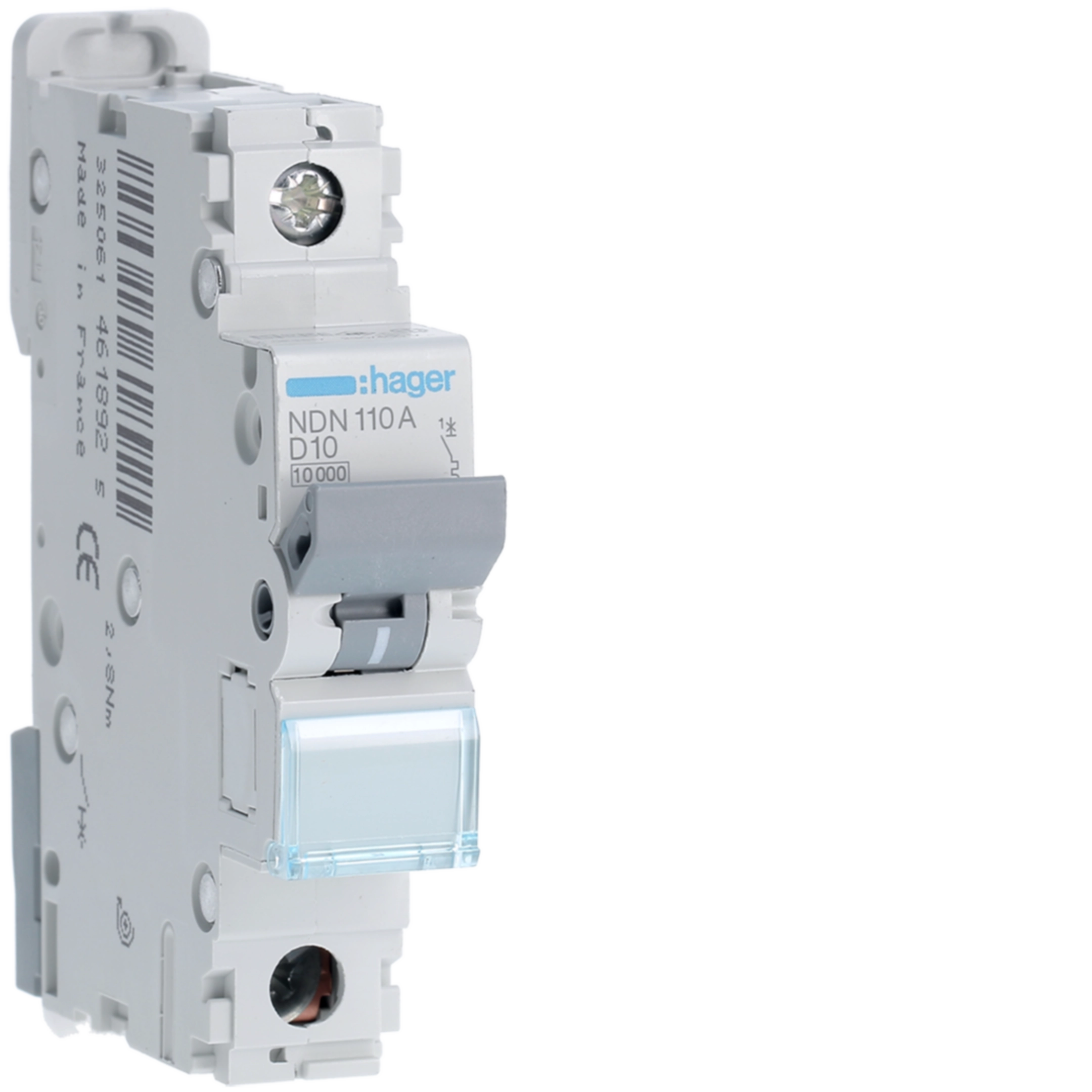

MCB 1P 10kA/15kA D-10A 1M


$62.00 List price: $79.30
+

Weight: 0.500 kg

Product Name/Title: MCB 1P 10kA/15kA D-10A 1M

Brand: Hager

SKU: NDN110A

Alternatively Known As: Miniature Circuit Breaker, MCB, Circuit Protection Device

Technical Specifications
  • Rated current: 10 A
  • Rated operational voltage: 230 - 400 V
  • Rated insulation voltage: 500 V
  • Rated impulse withstand voltage: 6000 V
  • Frequency: 50 - 60 Hz
  • Ingress Protection (IP) class: IP20
  • Electric endurance: 4000 cycles
  • Mechanical operations: 20000 cycles
  • Dimensions (H x L x W): 83mm x 70mm x 18mm
  • Weight: 0.5 kg
Key Features
  • Rated short-circuit breaking capacity of 10 kA.
  • Operating temperature range from -25°C to 70°C.
  • Compact design for DIN rail mounting.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Residential: Homes, apartments, and small buildings
  • Commercial: Offices and retail spaces
  • Industrial: Light industrial applications requiring circuit protection
Standards & Compliance
  • Complies with AS/NZS 60898 for circuit breakers.
Environmental Benefits
  • RoHS compliant, contributing to reduced environmental impact.
  • Commitment to improving environmental performance by reducing carbon footprint.
Warranty Information

2 years warranty against manufacturing defects.

Available Now

The Hager MCB 1P 10kA/15kA D-10A 1M is available now for immediate purchase. Ideal for residential, commercial, and industrial applications.
