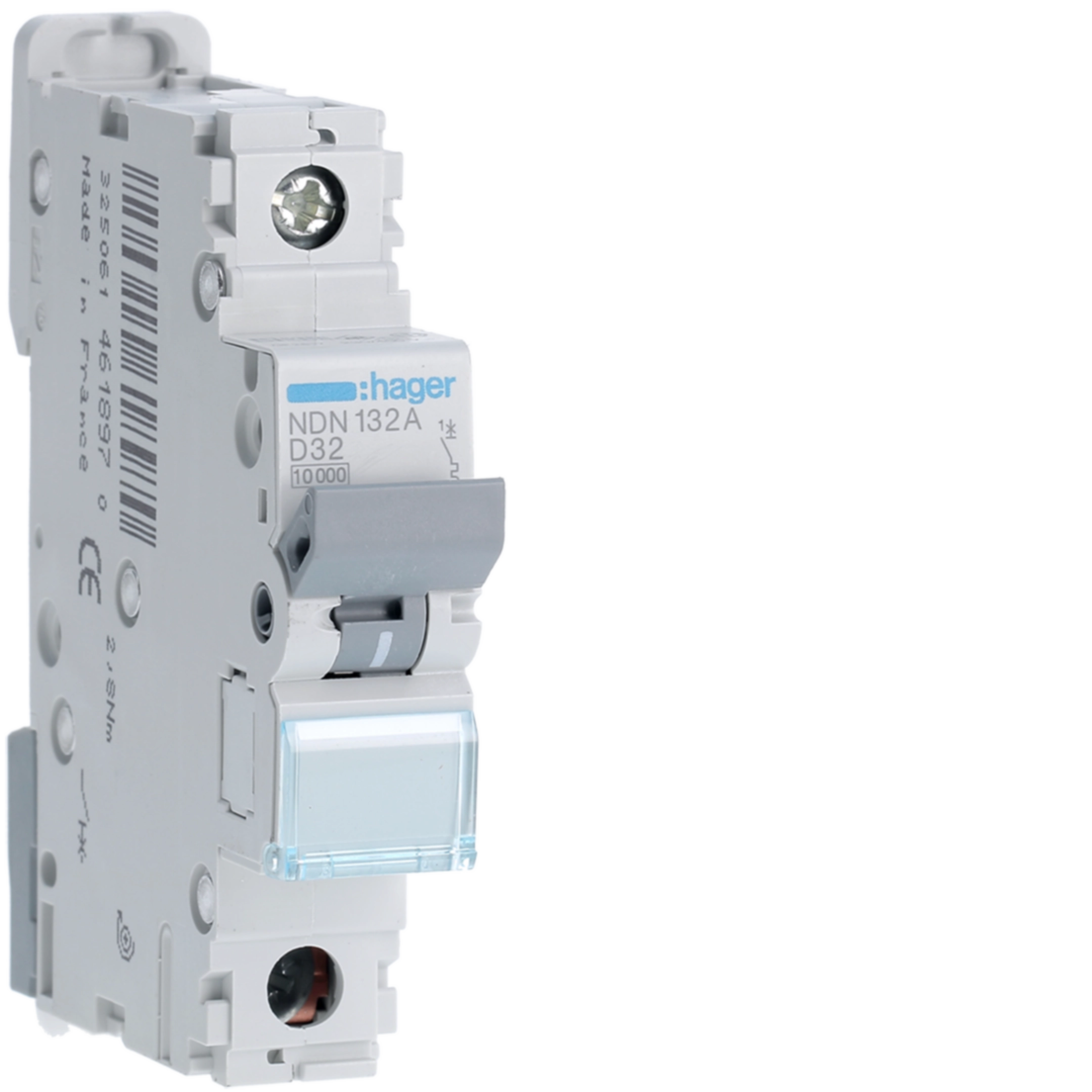

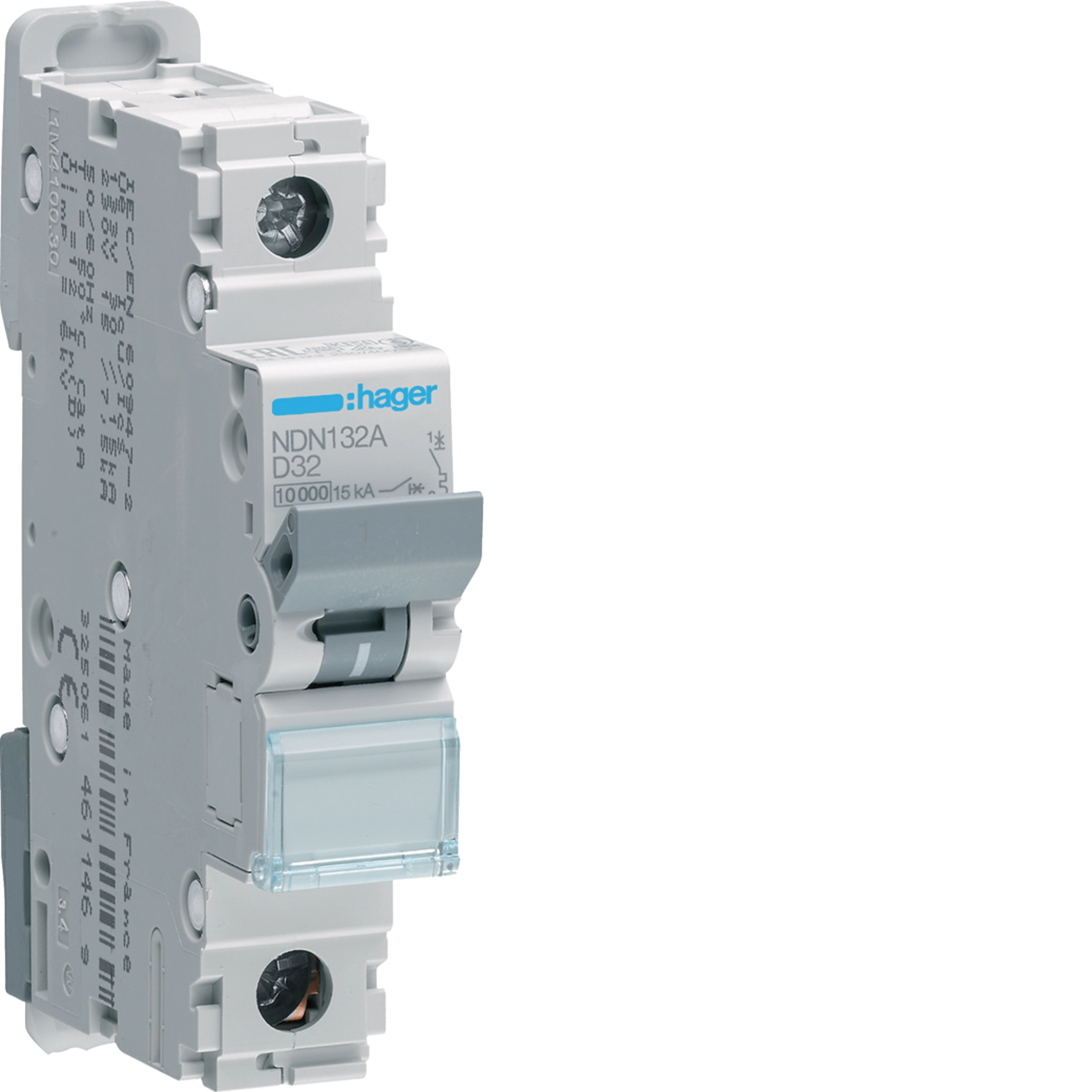

Product Name/Title: MCB 1P 10kA/15kA D-32A 1M
Brand: Hager
SKU: NDN132A
Alternatively Known As: Miniature Circuit Breaker, MCB, Circuit Protection Device
- Rated operational voltage: 230 - 400 V
- Rated insulation voltage: 500 V
- Rated impulse withstand voltage: 6000 V
- Frequency: 50 - 60 Hz
- Ingress Protection (IP) class: IP20
- Operating temperature: -25 to 70 °C
- Total power loss under IN: 3.65 W
- Electrical endurance: 4000 cycles
- Mechanical operations: 20000 cycles
- Dimensions (H x L x W): 83mm x 70mm x 18mm
- Weight: 0.5 kg
- Rated current of 32 A with a breaking capacity of 10 kA.
- Suitable for use in AC voltage supply systems.
- Compact design for DIN rail mounting.
- Professional installation by a qualified electrician is recommended for optimal safety.
- Residential: Homes, apartments, and small buildings
- Commercial: Offices and retail spaces
- Industrial: Light industrial applications requiring circuit protection
- Complies with AS/NZS 60898 for circuit breakers.
- RoHS compliant, contributing to reduced environmental impact.
- Designed to improve energy efficiency and reduce carbon footprint.
2 years warranty against manufacturing defects.
The Hager MCB 1P 10kA/15kA D-32A 1M is available now for immediate purchase. Ideal for residential, commercial, and industrial applications.
