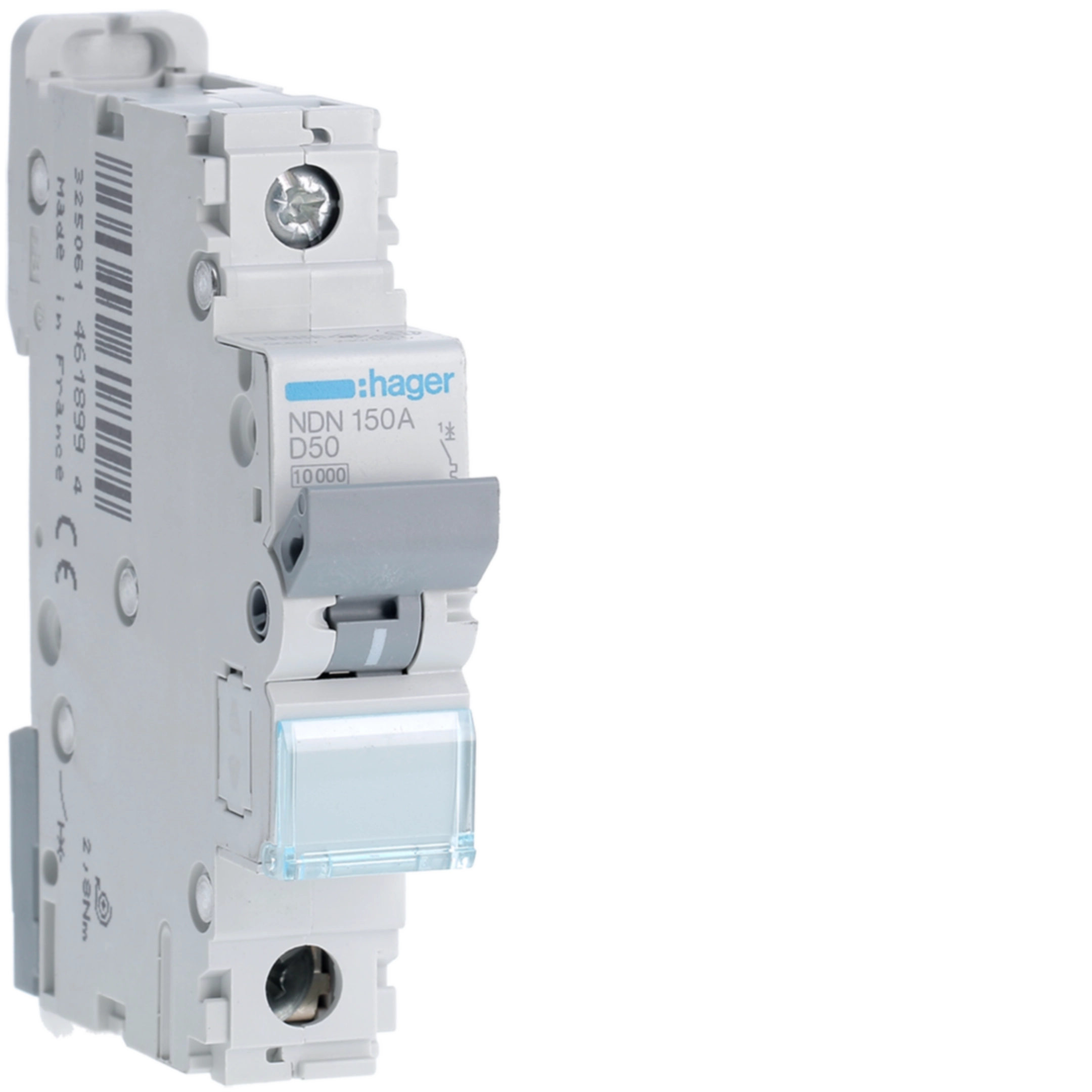

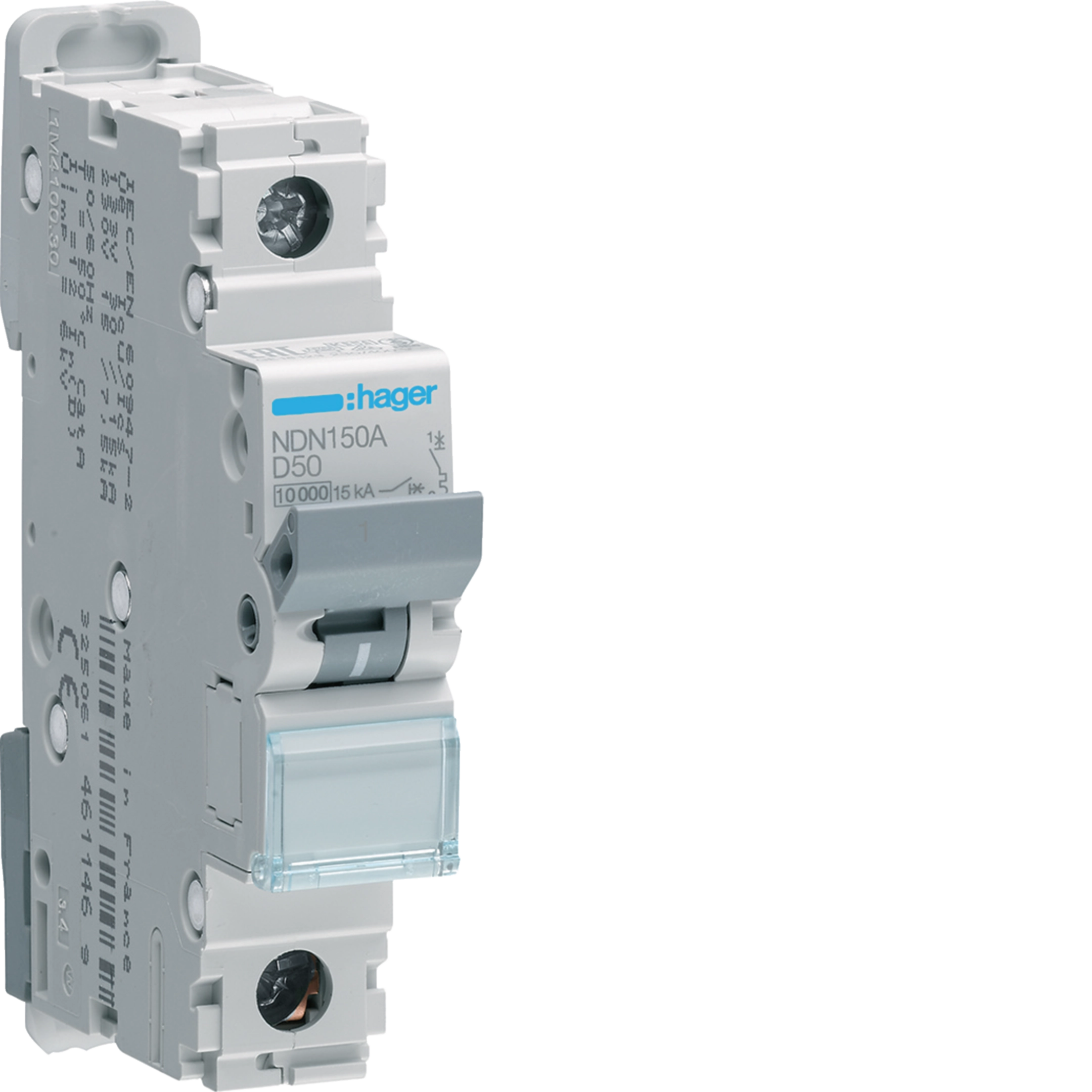

Product Name/Title: MCB 1P 10kA/15kA D-50A 1M
Brand: Hager
SKU: NDN150A
Alternatively Known As: Miniature Circuit Breaker, MCB, Circuit Protection Device
- Rated operational voltage: 230 - 400 V
- Rated insulation voltage: 500 V
- Rated impulse withstand voltage: 6000 V
- Frequency: 50 - 60 Hz
- Total power loss under IN: 4.70 W
- Electrical endurance: 4000 cycles
- Mechanical operations: 20000 cycles
- Dimensions (H x L x W): 83mm x 70mm x 17.5mm
- Weight: 0.5 kg
- Rated current of 50 A with a short-circuit breaking capacity of 10 kA.
- Operating temperature range from -25°C to 70°C.
- IP20 ingress protection rating.
- Professional installation by a qualified electrician is recommended for optimal safety.
- Residential: Homes, apartments, and electrical installations
- Commercial: Offices, retail spaces, and industrial applications
- Complies with AS/NZS 3000 for electrical installations.
- RoHS compliant, contributing to reduced environmental impact.
- Commitment to improving environmental performance by reducing carbon footprint.
2 years warranty against manufacturing defects.
The Hager MCB 1P 10kA/15kA D-50A 1M is available now for immediate purchase. Ideal for residential and commercial electrical installations.
