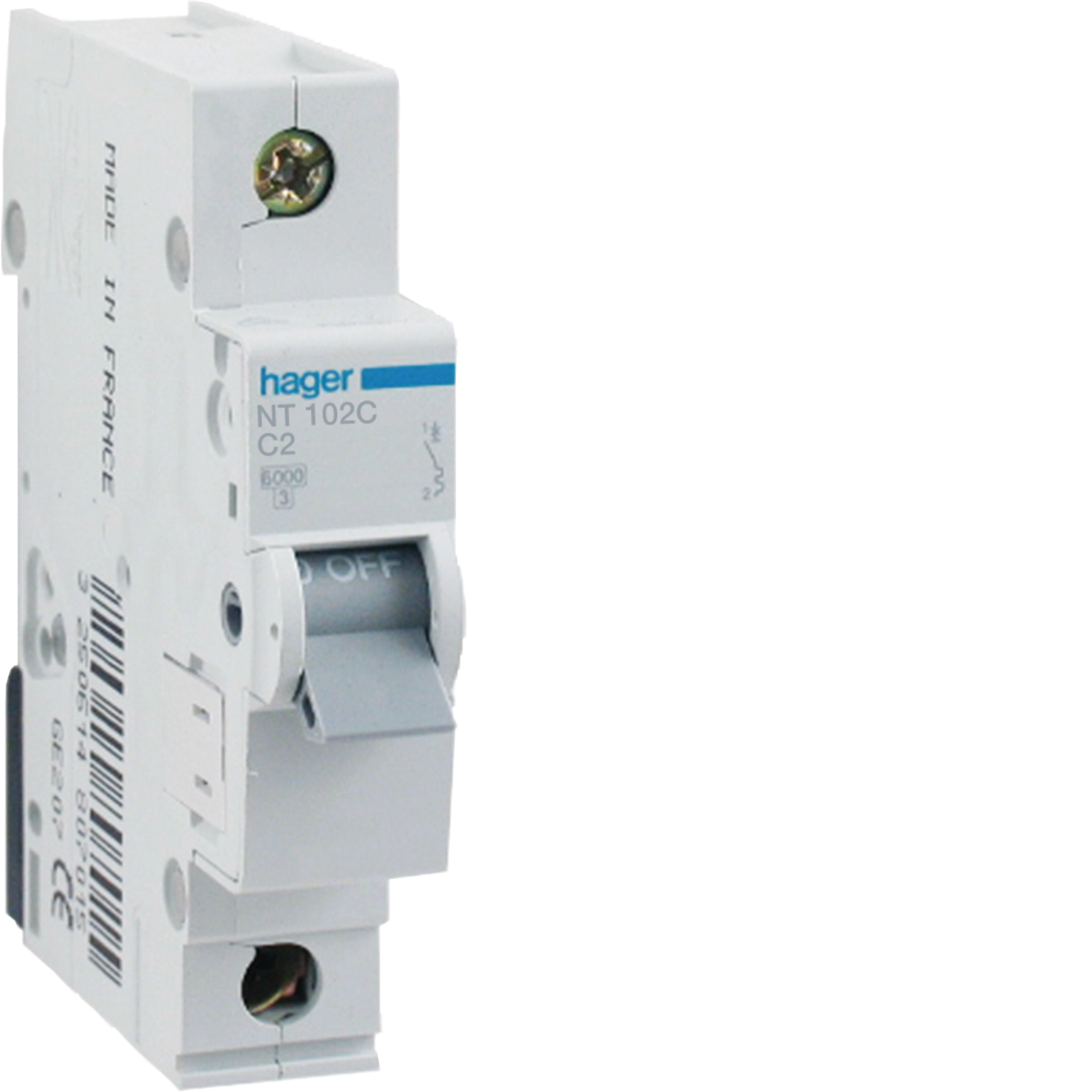

Product Name/Title: MCB 1P 10kA C-2A 1M
Brand: Hager
SKU: NT102C
Alternatively Known As: Miniature Circuit Breaker, MCB, Circuit Protection Device
- Rated current: 2 A
- Rated operational voltage: 240 - 415 V
- Rated insulation voltage: 500 V
- Rated impulse withstand voltage: 4000 V
- Frequency: 50 - 60 Hz
- Ingress Protection (IP) class: IP20
- Operating temperature: -25 to 70 °C
- Total power loss under IN: 1.30 W
- Dimensions (H x L x W): 83mm x 70mm x 17.5mm
- Weight: 0.5 kg
- Rated short-circuit breaking capacity of 10 kA.
- Single pole design with Curve C characteristics.
- Compact size for DIN rail mounting.
- Professional installation by a qualified electrician is recommended for optimal safety.
- Residential: Homes, apartments, and small buildings
- Commercial: Offices and retail spaces
- Industrial: Light industrial applications requiring circuit protection
- Complies with AS/NZS 60898 for circuit breakers.
- RoHS and REACH compliant, contributing to reduced environmental impact.
1 year warranty against manufacturing defects.
The Hager MCB 1P 10kA C-2A 1M is available now for immediate purchase. Ideal for residential and commercial applications requiring reliable circuit protection.
