NT150C

MCB 1P 10kA C-50A 1M


$20.80 List price: $26.60
+

Weight: 0.500 kg

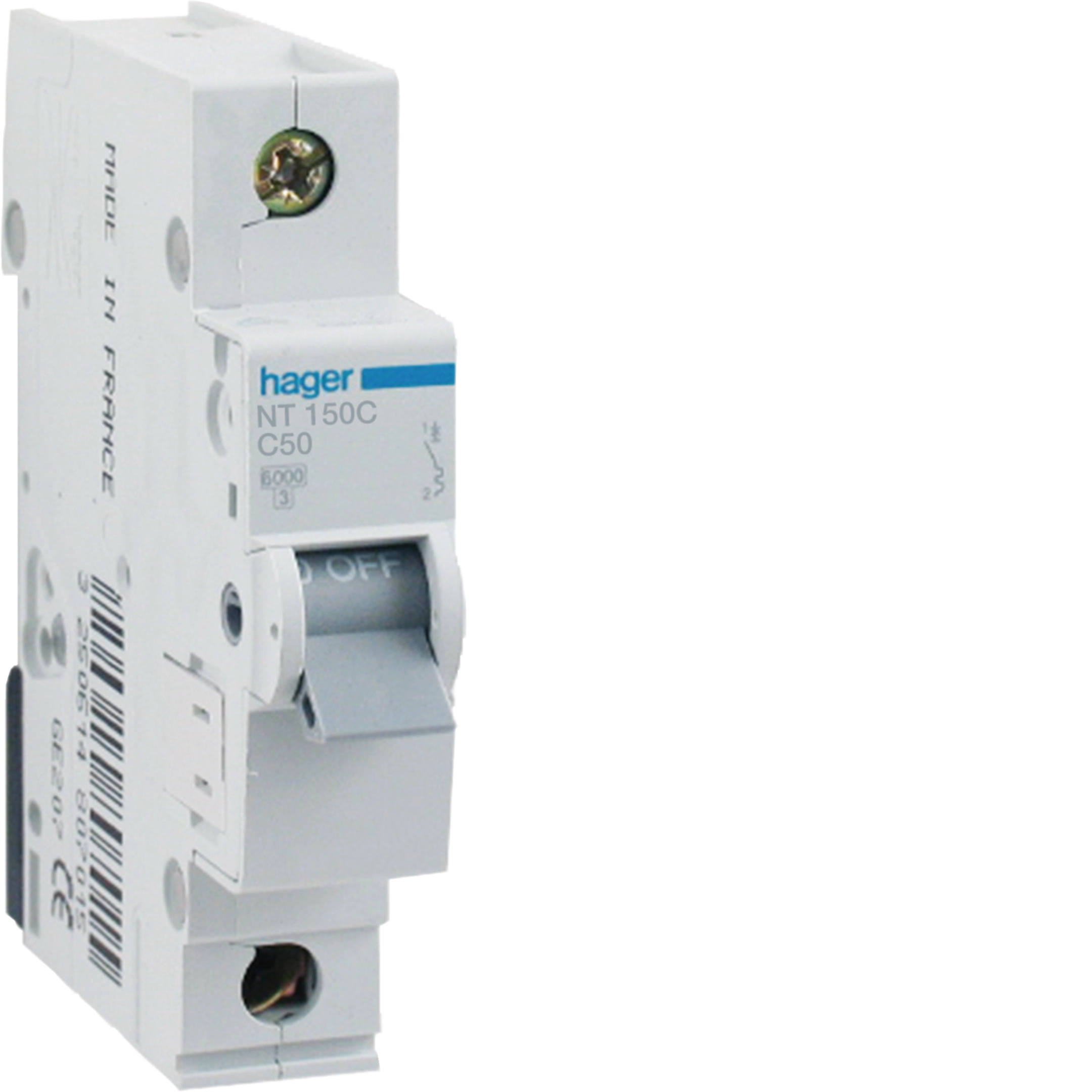

Product Name/Title: MCB 1P 10kA C-50A 1M

Brand: Hager

SKU: NT150C

Alternatively Known As: Miniature Circuit Breaker, MCB, Circuit Protection Device

Technical Specifications
  • Rated operational voltage: 240 - 415 V
  • Rated insulation voltage: 500 V
  • Rated impulse withstand voltage: 4000 V
  • Frequency: 50 - 60 Hz
  • Nominal tightening torque: 2.80 Nm
  • Connection for massive conductors: 1 - 35 mm²
  • Connection for flexible conductors: 1 - 25 mm²
  • Operating temperature: -25 to 70 °C
  • Total power loss under IN: 5.20 W
  • Dimensions (H x L x W): 83mm x 70mm x 17.5mm
  • Weight: 0.5 kg
Key Features
  • Rated current of 50 A with a short-circuit breaking capacity of 10 kA.
  • Single pole design with Curve C characteristics.
  • IP20 ingress protection rating.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Residential: Homes, apartments, and electrical installations
  • Commercial: Offices and retail spaces
  • Industrial: Factories and manufacturing facilities
Standards & Compliance
  • Complies with AS/NZS 60898 for safety and performance standards.
Environmental Benefits
  • RoHS and REACH compliant, contributing to reduced environmental impact.
Warranty Information

2 years warranty against manufacturing defects.

Available Now

The Hager MCB 1P 10kA C-50A 1M is available now for immediate purchase. Ideal for residential, commercial, and industrial electrical installations.
