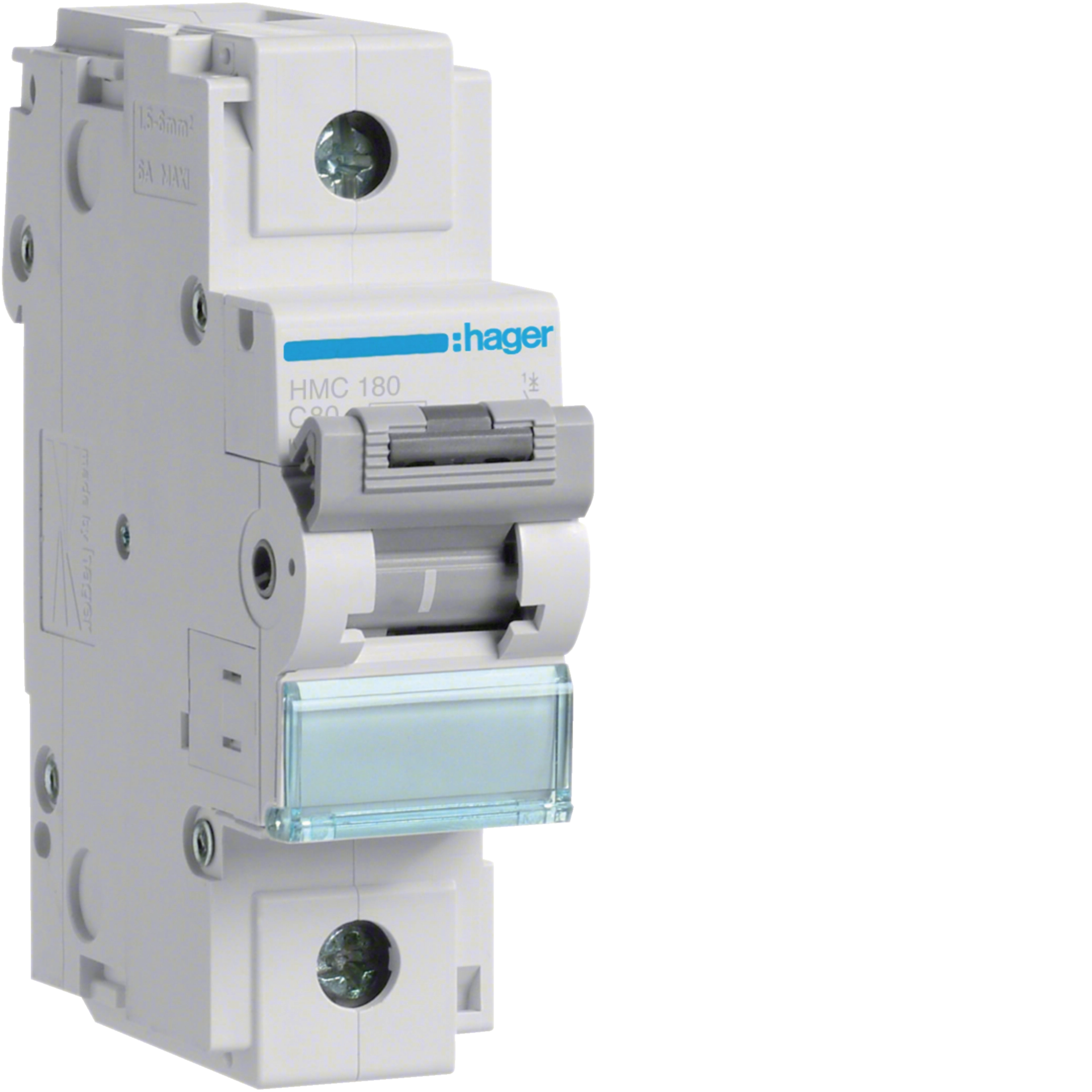

Product Name/Title: MCB 1P 15kA C-80A 1.5M
Brand: Hager
SKU: HMC180T
Alternatively Known As: Miniature Circuit Breaker, MCB, Circuit Protection Device
Technical Specifications
- Type of pole: 1P
- Curve: C
- Rated operational voltage: 240 - 415 V
- Rated insulation voltage: 500 V
- Rated impulse withstand voltage: 6000 V
- Frequency: 50 - 60 Hz
- Nominal tightening torque: 3.5 - 5.0 Nm
- Electric current: Rated current 80 A
- Rated short-circuit breaking capacity: 15 kA
- Endurance: 4000 electric cycles, 20000 mechanical operations
- Cross-section of input/output: 1 - 70 mm² for massive conductors, 1 - 50 mm² for flexible conductors
- Dimensions (H x L x W): 90mm x 70mm x 27mm
- Weight: 0.5 kg
Key Features
- Rated current of 80 A with a breaking capacity of 15 kA.
- Designed for AC voltage supply between 240 - 415 V.
- Screw terminal connections for modular devices.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, offices
- Commercial: Retail, hospitality, workspaces
- General: Electrical protection in various installations
Standards & Compliance
- Complies with AS/NZS 60947-2 for circuit breakers.
Environmental Benefits
- RoHS and REACH compliant, contributing to reduced environmental impact.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Hager MCB 1P 15kA C-80A 1.5M is available now for immediate purchase. Ideal for electrical protection in various installations.
