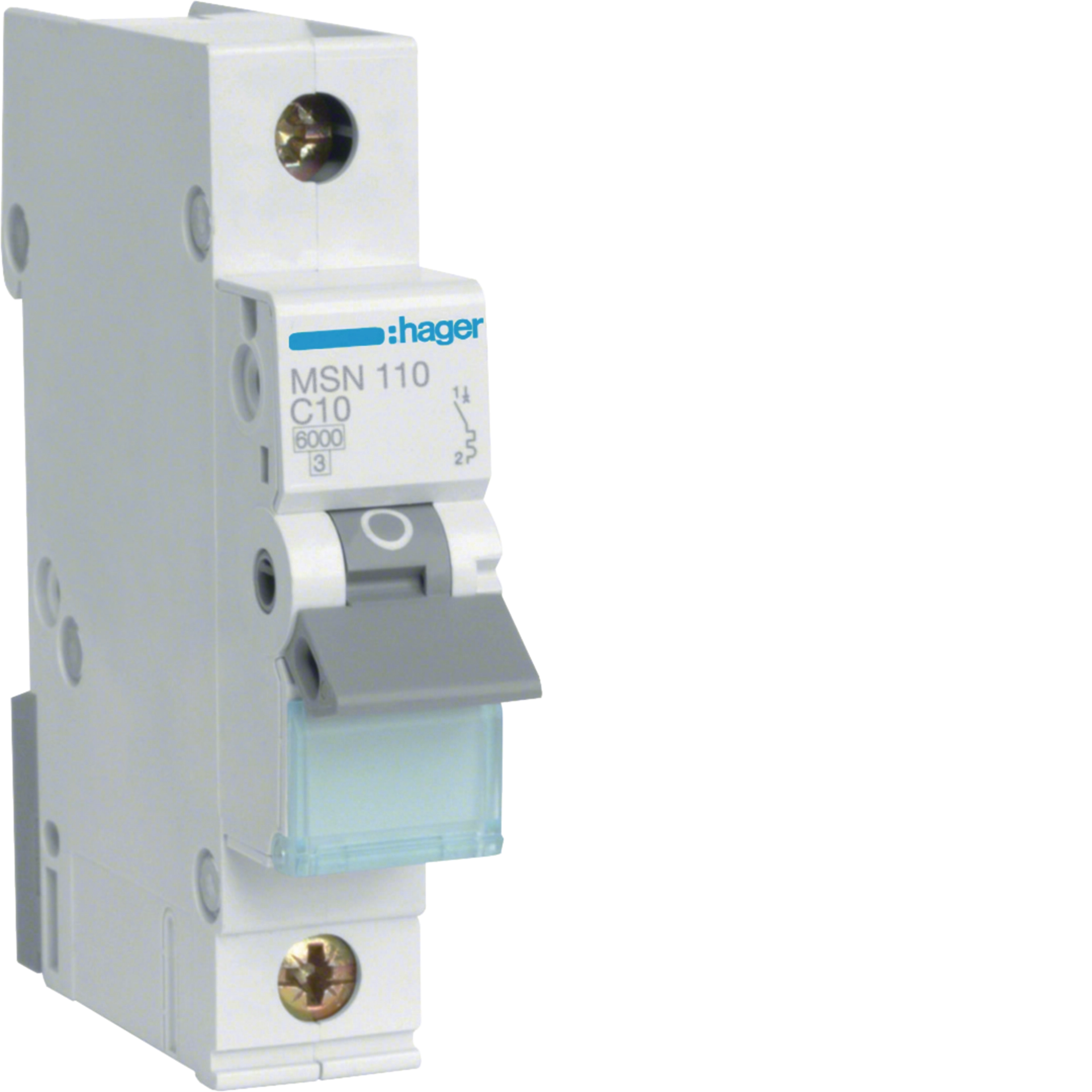

Product Name/Title: MCB 1P 6kA C-10A 1M
Brand: Hager
SKU: MSN110
Alternatively Known As: Miniature Circuit Breaker, MCB, Circuit Protection Device
Technical Specifications
- Rated short-circuit breaking capacity: 6 kA
- Rated operational voltage: 240 - 415 V
- Rated insulation voltage: 500 V
- Rated impulse withstand voltage: 4000 V
- Frequency: 50 - 60 Hz
- Nominal tightening torque: 2.80 Nm
- Cross-section for massive conductors: 1 - 35 mm²
- Cross-section for flexible conductors: 1 - 25 mm²
- Degree of pollution: 2
- Class of energy limitation: I²t 3
- Total power loss under IN: 1.63 W
- Dimensions (H x L x W): 83mm x 70mm x 17.5mm
- Weight: 0.5 kg
Key Features
- Rated current of 10 A with a breaking capacity of 6 kA.
- Suitable for use in various climates with an operating temperature range of -25 to 70 °C.
- IP20 ingress protection for indoor use.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, and small buildings
- Commercial: Offices and retail spaces
- Industrial: Light industrial applications requiring circuit protection
Standards & Compliance
- Complies with AS/NZS 60950 for safety of electrical equipment.
Environmental Benefits
- Commitment to reducing carbon footprint and improving environmental performance.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Hager MCB 1P 6kA C-10A 1M is available now for immediate purchase. Ideal for residential and commercial applications requiring reliable circuit protection.
