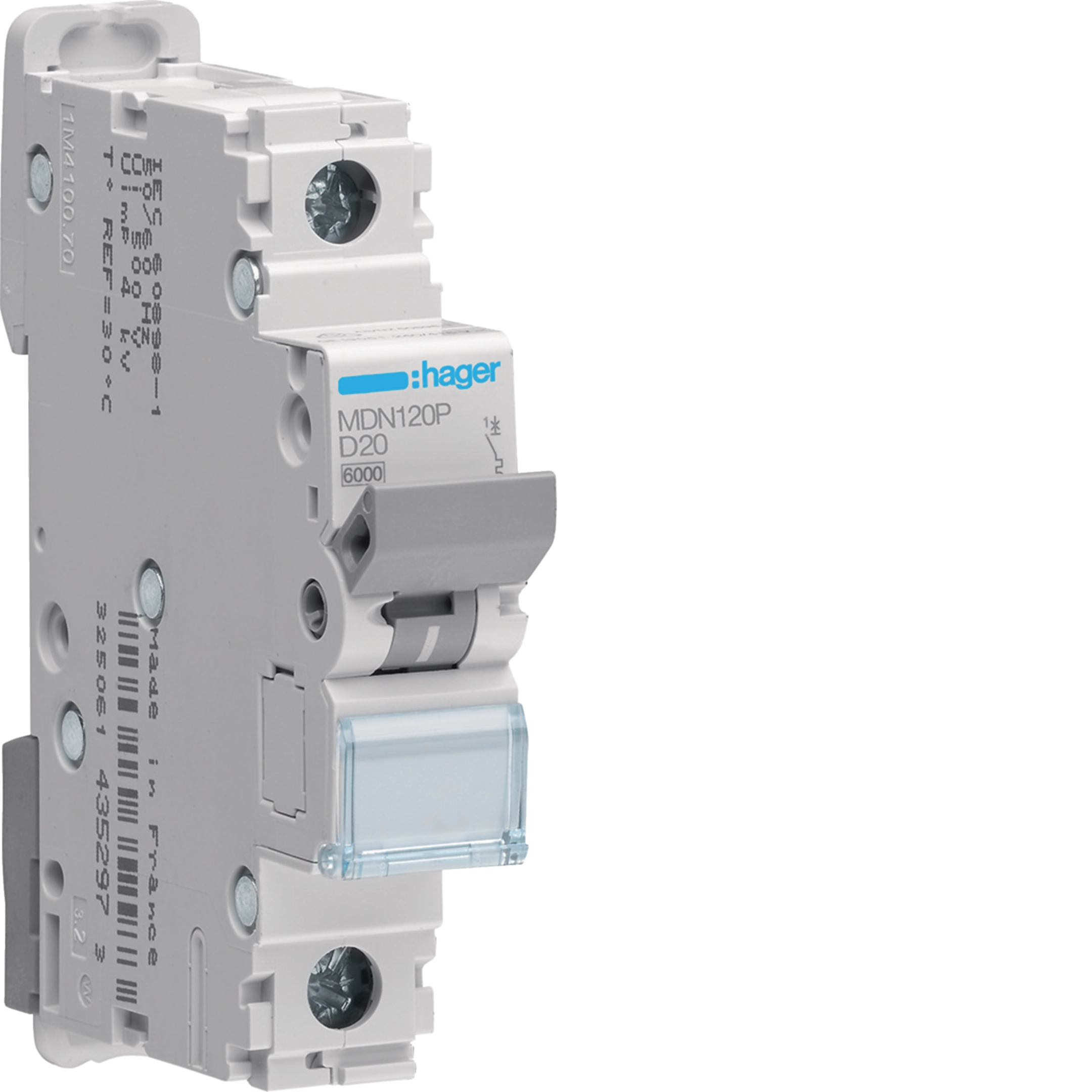

Product Name/Title: MCB 1P 6kA D-20A 1M
Brand: Hager
SKU: MDN120P
Alternatively Known As: Miniature Circuit Breaker, MCB, Circuit Protection Device
- Rated operational voltage: 240-415 V
- Rated insulation voltage: 500 V
- Rated impulse withstand voltage: 4000 V
- Frequency: 50-60 Hz
- Nominal tightening torque: 2.80 Nm
- Connection type: Screw terminal
- Cross-section for massive conductors: 1-35 mm²
- Cross-section for flexible conductors: 1-25 mm²
- Total power loss under IN: 2.70 W
- Dimensions (H x L x W): 85mm x 70mm x 18mm
- Weight: 0.5 kg
- Rated current of 20 A with a breaking capacity of 6 kA.
- Wide operational temperature range from -25°C to 70°C.
- IP20 ingress protection rating.
- Professional installation by a qualified electrician is recommended for optimal safety.
- Residential: Homes, apartments, and small buildings
- Commercial: Offices and retail spaces
- Industrial: Light industrial applications requiring circuit protection
- Complies with AS/NZS 3000 for electrical installations.
- RoHS compliant, contributing to reduced environmental impact.
- Commitment to improving environmental performance by reducing carbon footprint.
2 years warranty against manufacturing defects.
The Hager MCB 1P 6kA D-20A 1M is available now for immediate purchase. Ideal for residential, commercial, and industrial applications.
