MDN150P

MCB 1P 6kA D-50A 1M

$45.20 List price: $57.80
+ −
30 Days Return Delivery Options
Weight: 0.500 kg

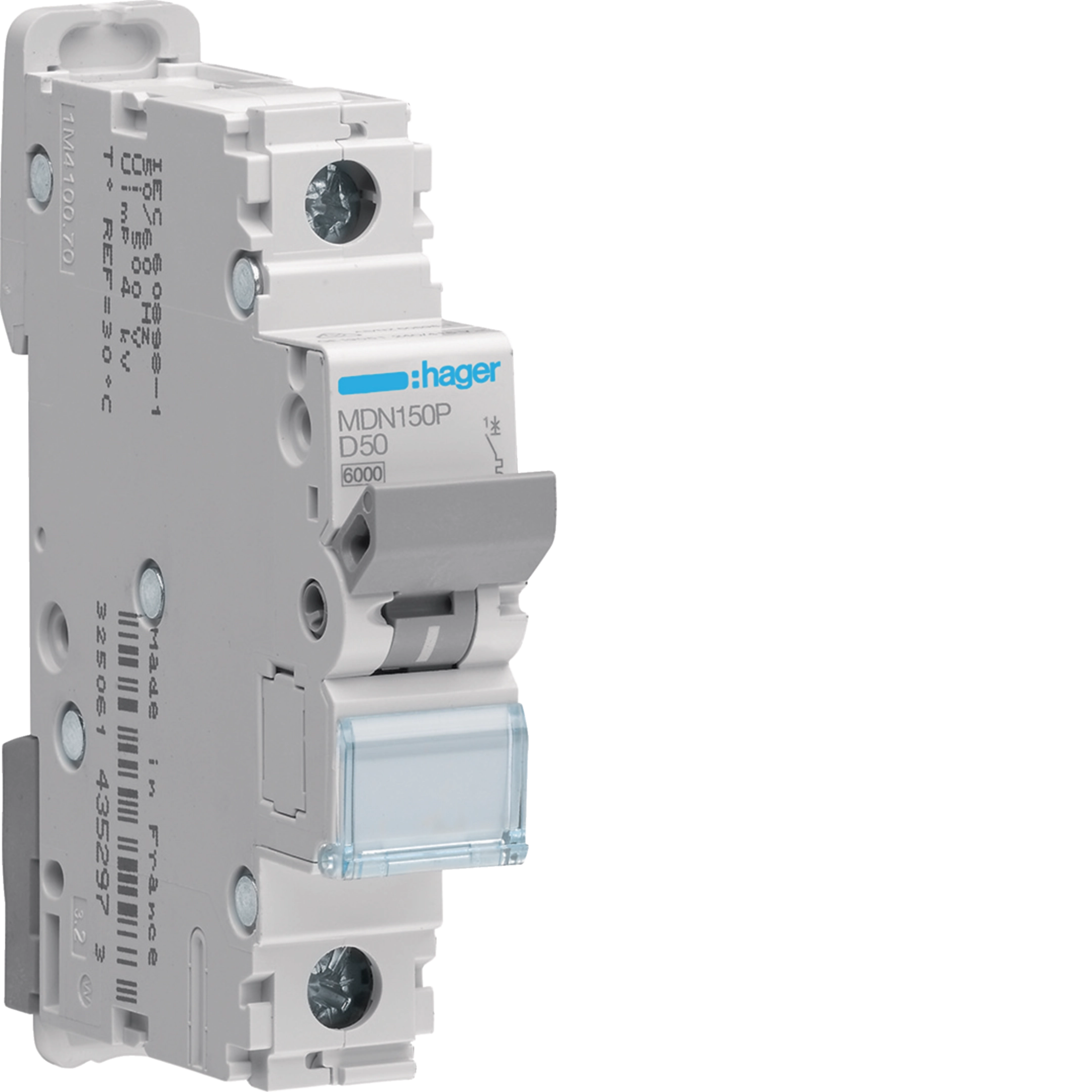

Product Name/Title: MCB 1P 6kA D-50A 1M

Brand: Hager

SKU: MDN150P

Alternatively Known As: Miniature Circuit Breaker, MCB, Circuit Protection Device

Technical Specifications
  • Rated operational voltage: 240-415 V
  • Rated insulation voltage: 500 V
  • Rated impulse withstand voltage: 6000 V
  • Frequency: 50-60 Hz
  • Nominal tightening torque: 2.80 Nm
  • Connection type: Screw terminal
  • Cross-section for massive conductors: 1-35 mm²
  • Cross-section for flexible conductors: 1-25 mm²
  • Total power loss under IN: 4.70 W
  • Dimensions (H x L x W): 85mm x 70mm x 18mm
  • Weight: 0.5 kg
Key Features
  • Rated current of 50 A with a short-circuit breaking capacity of 6 kA.
  • Wide operational temperature range from -25°C to 70°C.
  • IP20 ingress protection rating.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Residential: Homes, apartments, and small buildings
  • Commercial: Offices and retail spaces
  • Industrial: Light industrial applications requiring circuit protection
Standards & Compliance
  • Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
  • RoHS compliant, contributing to reduced environmental impact.
  • Commitment to improving environmental performance by reducing carbon footprint.
Warranty Information

2 years warranty against manufacturing defects.

Available Now

The Hager MCB 1P 6kA D-50A 1M is available now for immediate purchase. Ideal for residential, commercial, and industrial applications.
