NDN263A

MCB 2P 10kA/15kA D-63A 2M


$187.80 List price: $240.10
+

Weight: 0.500 kg

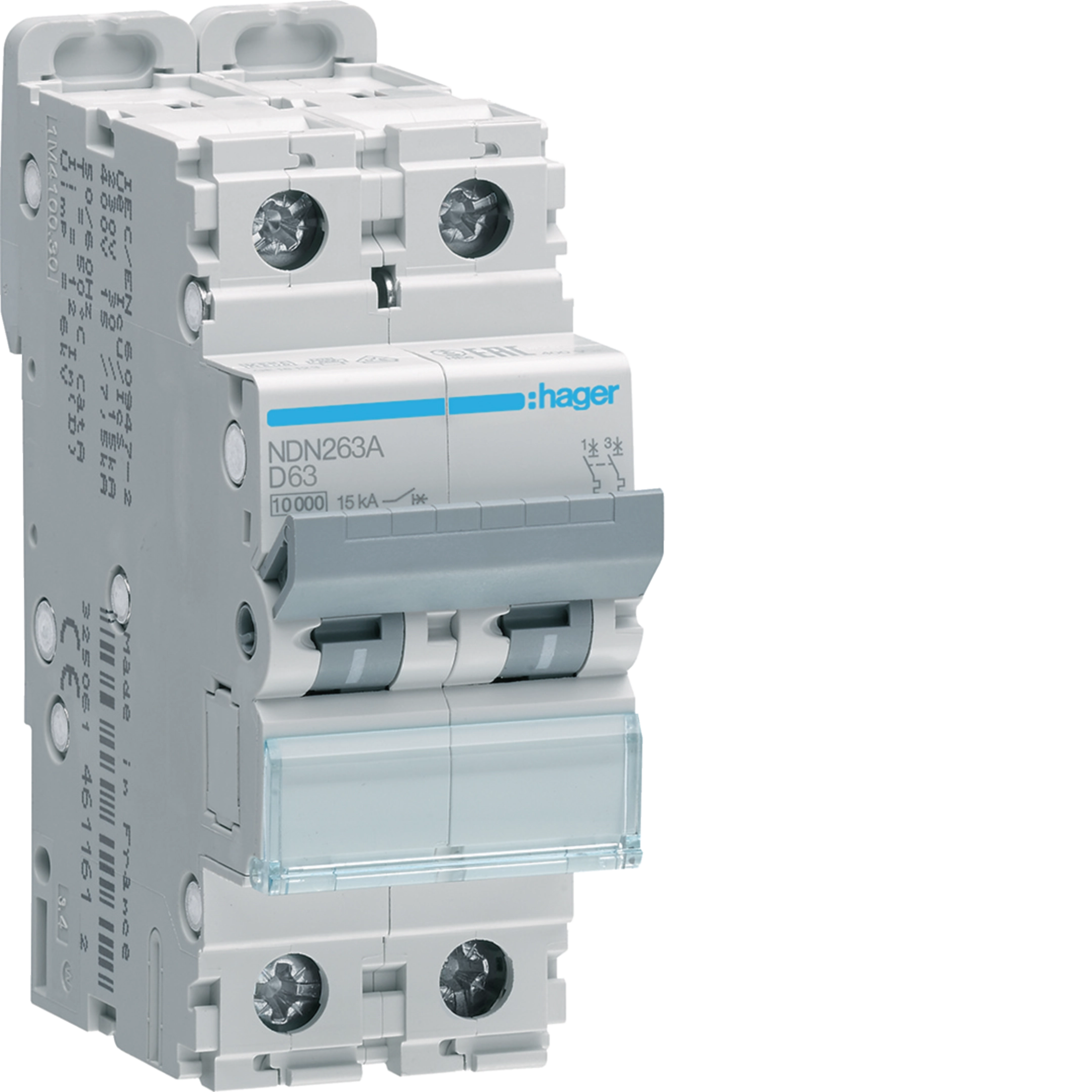

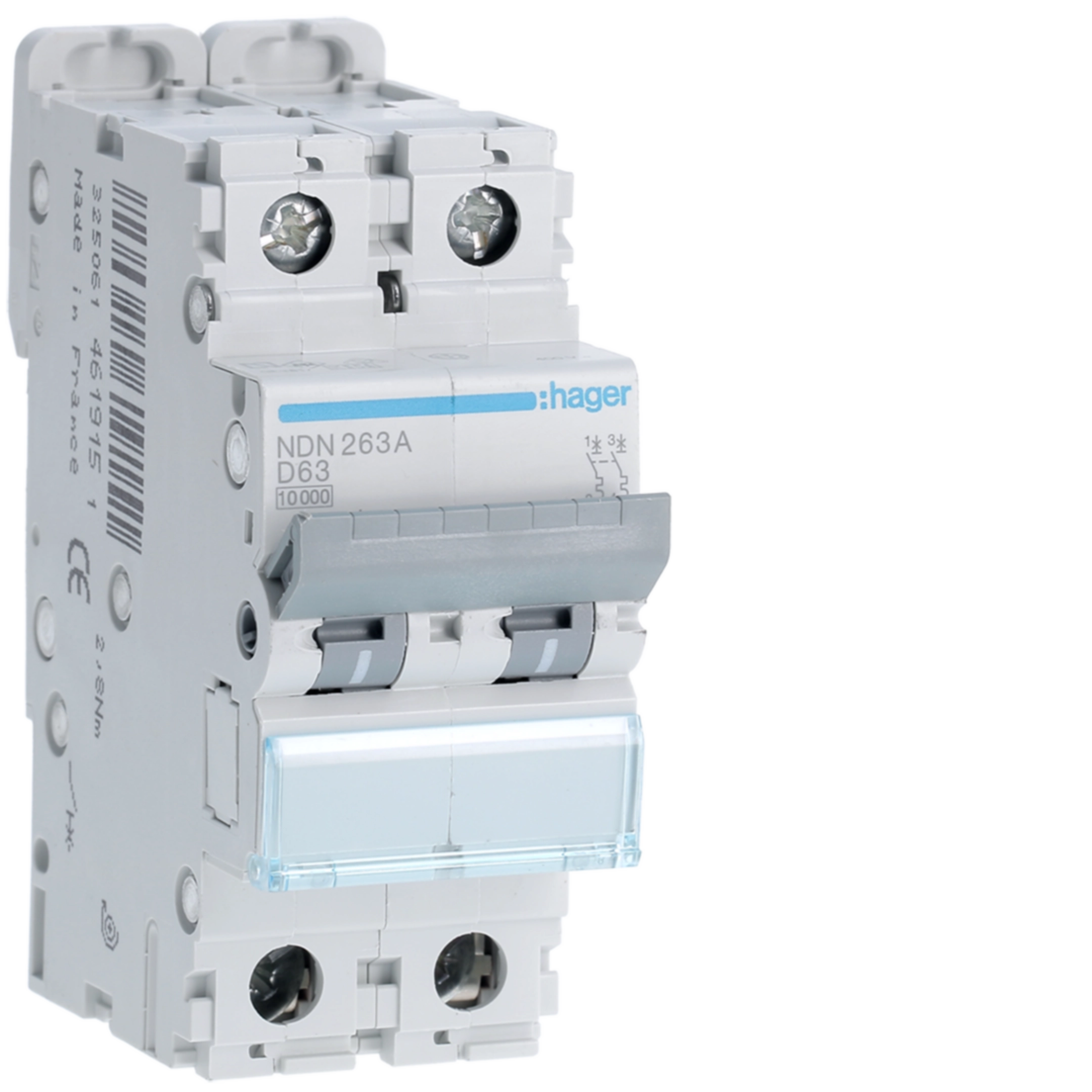

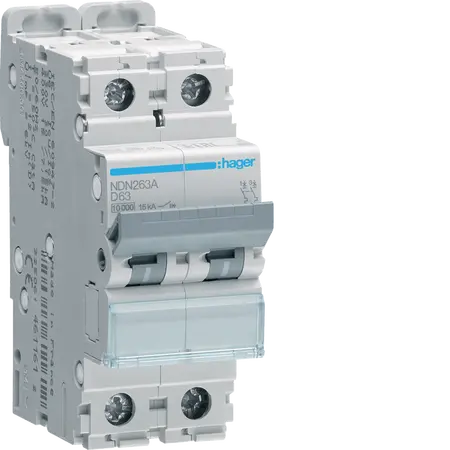

Product Name/Title: MCB 2P 10kA/15kA D-63A 2M

Brand: Hager

SKU: NDN263A

Alternatively Known As: Miniature Circuit Breaker, MCB, Circuit Protection Device

Technical Specifications
  • Rated operational voltage: 400 V
  • Rated insulation voltage: 500 V
  • Rated impulse withstand voltage: 6000 V
  • Frequency: 50 - 60 Hz
  • Ingress Protection (IP) class: IP20
  • Operating temperature: -25 to 70 °C
  • Total power loss under IN: 13.10 W
  • Electrical endurance: 4000 cycles
  • Mechanical operations: 20000 cycles
  • Dimensions (H x L x W): 83mm x 70mm x 35mm
  • Weight: 0.5 kg
Key Features
  • Rated current of 63 A with a breaking capacity of 10 kA.
  • Designed for modular installation with 2 poles.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Residential: Homes, apartments, and electrical installations
  • Commercial: Offices, retail spaces, and industrial applications
Standards & Compliance
  • Complies with AS/NZS 60898 for circuit breakers.
Environmental Benefits
  • RoHS compliant, contributing to reduced environmental impact.
Warranty Information

2 years warranty against manufacturing defects.

Available Now

The Hager MCB 2P 10kA/15kA D-63A 2M is available now for immediate purchase. Ideal for residential and commercial electrical installations.
